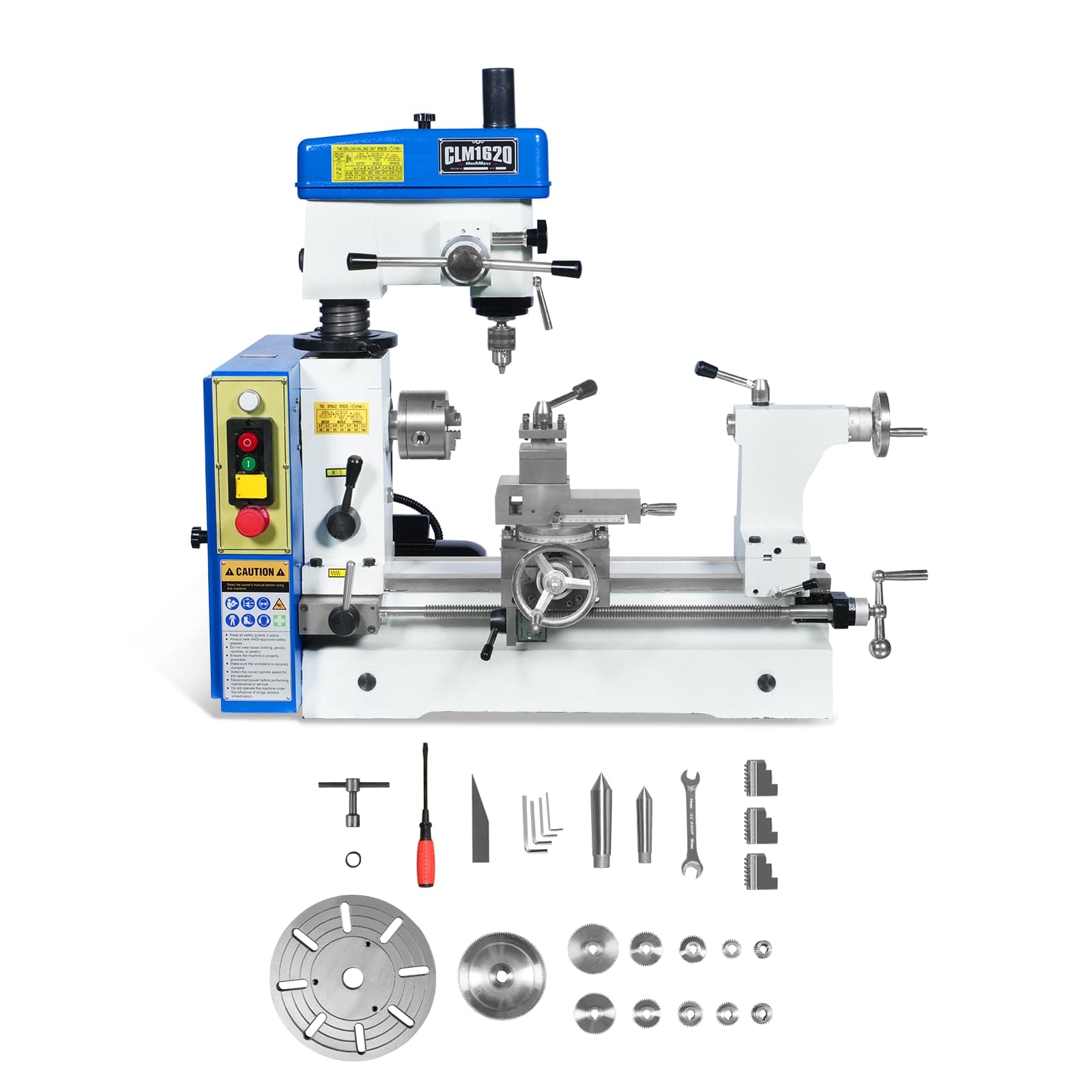

1 HP 16''x16'' Multi-Function Metal Lathe Milling Machine Head for Metalworking Combo Lathe, Drilling, and Milling Operations with Powerful Motor,...

1 HP 16''x16'' Multi-Function Metal Lathe Milling Machine Head for Metalworking Combo Lathe, Drilling, and Milling Operations with Powerful Motor,...

Lathes & Mill Drill Combination

£1,712.27

Indicative price — contact our team to confirm and quote

  • No obligation
  • Fast response
  • Expert advice

110 V equipment — check your supply

This unit is specified at 110 V, against UK mains of 230 V. 110 V is common on UK sites as a centre-tapped transformer supply, so this may well suit site use — but UK site supply runs at 50 Hz, and this equipment is US-specified. Confirm your transformer and intended use with us before ordering.

Supplied to trade buyers only. Because this item is not UK supply specification, we supply it to businesses specifying it for a known application rather than to consumers. Tell us the installation and we will confirm what you need before you order.

Quantity
UK BasedExpert AdviceFree QuoteTechnical Support
Share: Email

Lathe
Motor Power (Lathe)
1HP(750W), Single-Phase, 110V, 60HZ
Swing Over Bed
16-8/15”(420mm)
Swing Over Cross Slide
11-1/2″(120mm)
Distance Between Centers
15-3/4”(400mm)
Bed Width
5-5/16”(135mm)
Spindle Bore
11/14”(20mm)
Spindle Mount
Flange mount
Spindle Type
Integrated Spindle
DIA of the chuck
4”(100mm)
Spindle Taper
MT3
Tailstock Taper
MT3
Tailstock Quill Travel
2-3/4”(70mm)
Carriage Travel
15”(380mm)
Carriage Leadscrew Diameter
25/32″(20mm)
Cross Slide Travel
4-8/11”(120mm)
Compound Slide Travel
3”(76.2mm)
Spindle Speed Range
160-1360RPM
Number of Speed Ranges
7
Longitudinal Feed Rate
0.002”-0.007” in/r
Transverse Feed Rate
NO
Leadscrew Size & Pitch
20mm 6TPI
Threading Capacity – Inch
8-120TPI
Threading Capacity – Metric
0.2-3mm
Thread Dial Indicator
NO
Maximum Tool Bit Size
1/2”x1/2”(12x12mm)
Drill/Mill
Motor Power (Mill Head)
Powered by the lathe’s motor
Mill Taper
MT3
Spindle Speed Range
117, 150, 220, 276, 290, 345, 360, 440, 450, 575, 640, 836, 1000, 1300
Number of Speed Steps
14
Spindle Travel
3-11/32″(85mm)
Drawbar Thread Size
3/8”(9.52mm)
Drawbar Length
10-3/4”(273mm)
Drawbar Thread Pitch
16TPI
Drill Capacity
19/32”(15mm)
End Milling Capacity
25/32″(20mm)
Face Milling Capacity
2-1/2″(63mm)
Vertical Travel (Z-Axis)
3-5/32”(80mm)
Distance: Spindle to Table
15-3/4”(400mm)
Distance: Spindle to Center Line
9-3/4”(248mm)
Headstock Height
3”(76.2mm)
Head Tilt Angle
0°
Swivel angle of the headstock
360°
Drive Type
Belt-driven AC Motor
Overall Dimensions
41”x23”x43”(1050x580x1090mm)
N.W/G.W
408/463lbs(180/210kg)

Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
