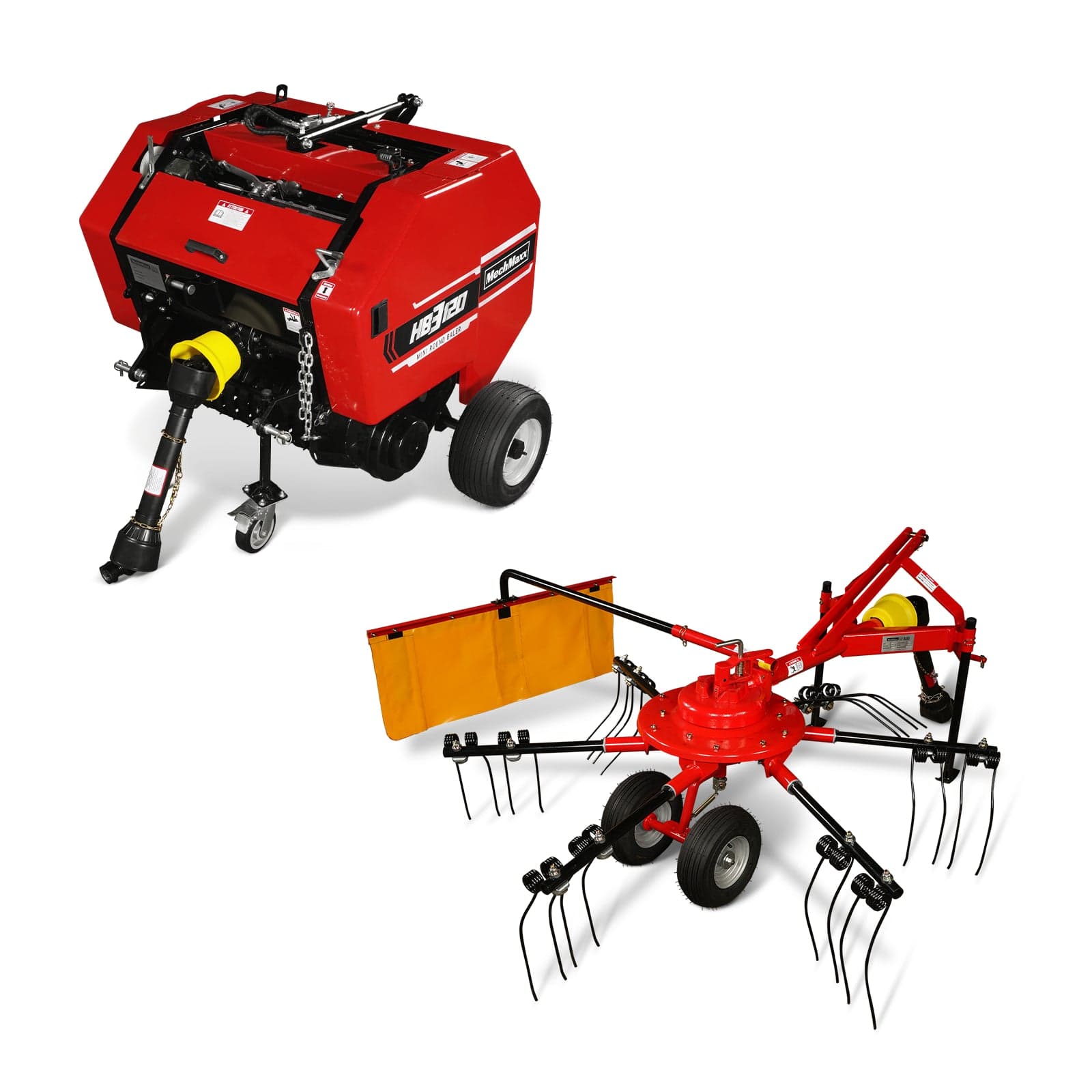

Hay Baler & Hay Rake Tedder & Disc Mower Combo, HB3120, HT100, DM6

Hay Baler HB3120

Power Required
15-50 Hp
Ropes Needed For Per Bale
62-95ft
Minimum Tractor Weight
1500 lbs
Tire Size
16 x 6.5 in
Bale Size （Diameter X Width）
φ20 X 28 in
PTO Shaft Speed
540 rpm
Bale Weight
30 – 50 lbs
Driveline Shaft Length
T4-LF-27.5
Overall (L x W x H)
45 x 51 x 47 in
Spline End
1.375in Z6
Pickup Width
31.5 in
3-Point Hitch
CAT 1
Efficiency
1.24-3.11 mi/h
Gearbox Oil Type
80W90 EP Gear Oil
Capacity
80 – 100 Bales / Hour
Finish
Powder Coating
Bale Wrapping
Twine Wrap
Warranty
1 Year
Hydraulics
Independent Hydraulic Power Unit, No Need Tractor Hydraulics
Shipping Box
47 x 45 x 47 in
Electrical
Aviation Plug, Easy To Connect With Tractor
Weight (N.W./G.W.)
970 /992 lbs
Hay Tedder Combo HT100

Power Required
15-50 hp
Tire Size
13×5.0-6
Minimum Tractor Weight
1500 lbs
PTO Shaft Speed
540 rpm
Working Width
100 in
Driveline Shaft Length
T4-23.2 in
Rake Diameter
79 in
Spline End
1.375in Z6
Spreading With
63 in
3-Point Hitch
CAT 1
Overall (L x W x H)
83 x 98 x 37 in
Finish
Powder Coating
Arms No.
6
Warranty
1 Year
Spring Teeth No.
12
Shipping Box
57 x 24 x 29 in
Working Speed
2.5-5 mi/h
Weight (N.W./G.W.)
357/405 lbs
Picking Up Objects
Various Types Of Straw, Pasture

Disc Mower DM6

Power Required
35-80 hp
Tilt-Down Angle
30°-40°
Working Width
5.12 ft
Min. Tractor Weight
2000 lbs
Working Speed
2.5-6.2 mi/h
Gearbox Oil Type
90SAE Oil
Stubble Height
2 in
3-Point Hitch
CAT 2
Number Of Disk
4 pcs
PTO Shaft Speed
540 rpm
Disc Length
15.4 in
Spline End
1.375in Z6
Disc Diameter Including Blade）
19.7 in
Safety Coth Material
PVC
Side Disc Height
9.5 in
Finsh
Powder Coating
Number Of Blades
8 pcs
Product Size (L*W*H)
138 x 55 x 30 in
Blades Material
65Mn
Package Size (L*W*H)
71 x 29 x 67 in
Number Of Belts
4
Machine Warranty
1 Year
Tilt-Up Angle
80°
Weight (N.W./G.W.)
1001/1186 lbs
