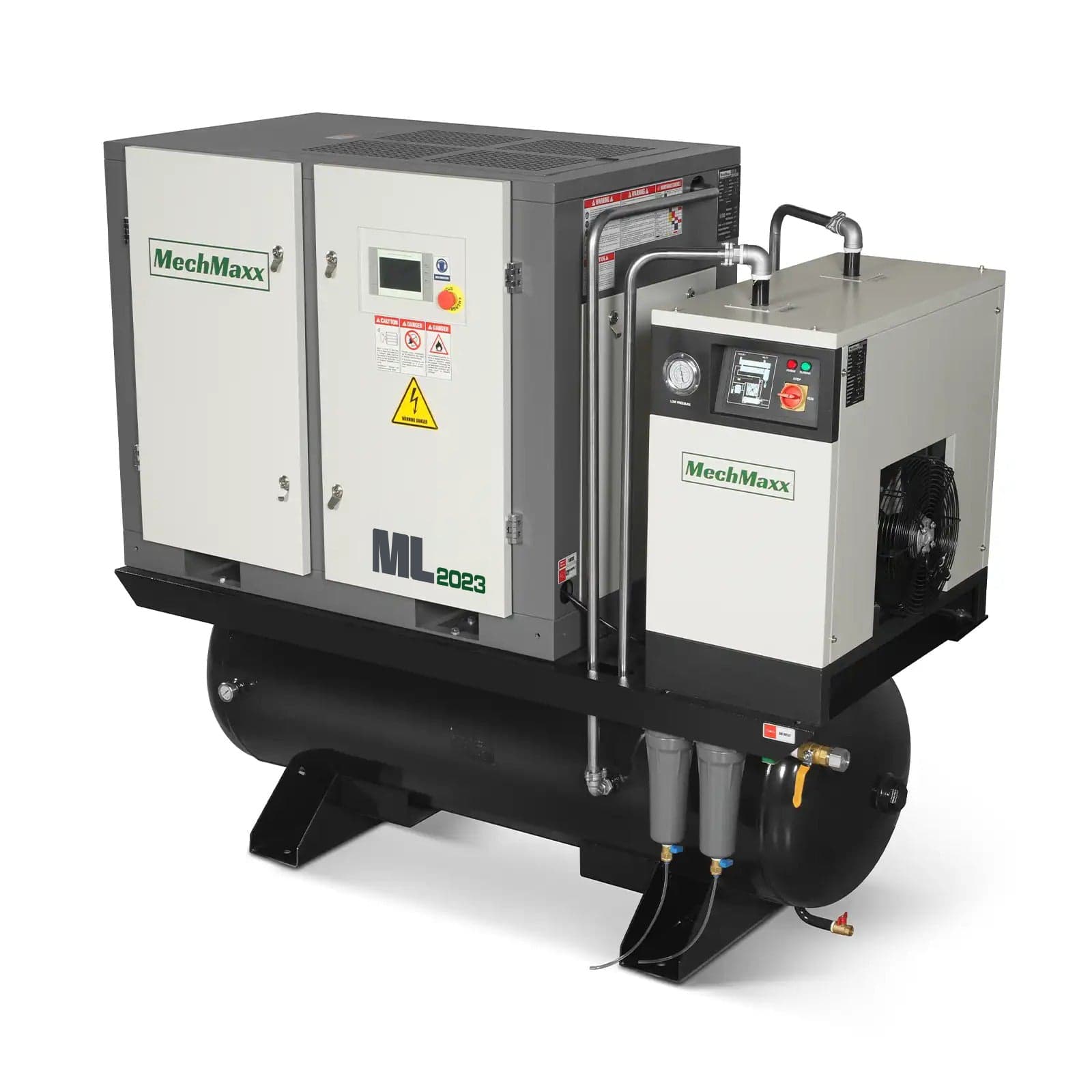

20HP Combined Rotary Screw Air Compressor with Dryer & 105-Gal ASME Tank | 78 CFM, 116 PSI, 230V 3-Phase – Industrial Grade

20HP Combined Rotary Screw Air Compressor with Dryer & 105-Gal ASME Tank | 78 CFM, 116 PSI, 230V 3-Phase – Industrial Grade

78CFM Combined Air Compressor

£6,110.75

Indicative price — contact our team to confirm and quote

  • No obligation
  • Fast response
  • Expert advice

60 Hz equipment — UK mains is 50 Hz

This unit is configured for 60 Hz operation; UK mains runs at 50 Hz. Heating elements and other resistive loads are largely indifferent to frequency, but motors run around 20% slower on 50 Hz and timer or control circuits can be affected. Tell us the application and we will confirm suitability before you order.

Supplied to trade buyers only. Because this item is not UK supply specification, we supply it to businesses specifying it for a known application rather than to consumers. Tell us the installation and we will confirm what you need before you order.

Quantity
UK BasedExpert AdviceFree QuoteTechnical Support
Share: Email

Air Compressor Information
Voltage
230V 3PH 60HZ（L1+L2+L3,G）
Air Flow Capacity
78CFM
Wire Gauge
AWG3
Air Outlet Thread
1″NPT
Oil Tank Capacity
2.64Gal (10L)
Rated Power
20HP
Starting Method
Star-Delta (Wye-Delta) Start
Rated Pressure
116 PSI (0.8 MPa)
Noise Level
70dba
Motor Speed
3515RPM
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Recommended Oil Grade
S3R46
Oil Sight Glass
Yes
Pump Drive
Belt Drive
Air Tank & Refrigerated Air Dryer Information
Working Pressure
≤145PSI/1.0MPa
Design Pressure
145PSI/1.0MPa
Max Allowable Working Pressure
145PSI/1.0MPa
Working Temprerature
≤302℉/150℃
Design Temprerature
302℉/150℃
Maximum Design Metal Temperature
17.6℉/-8℃
Air Tank Capacity
400L / 105.6GAL
Air Dryer Capacity Flow
100CFM

Machine Size:
72.8″ x 33.5″ x 66.1″
Packing Size:
75.5″ x 38″ x 72.8″
N.W.:/ G.W.:
1235 lbs/ 1474 lbs

Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
