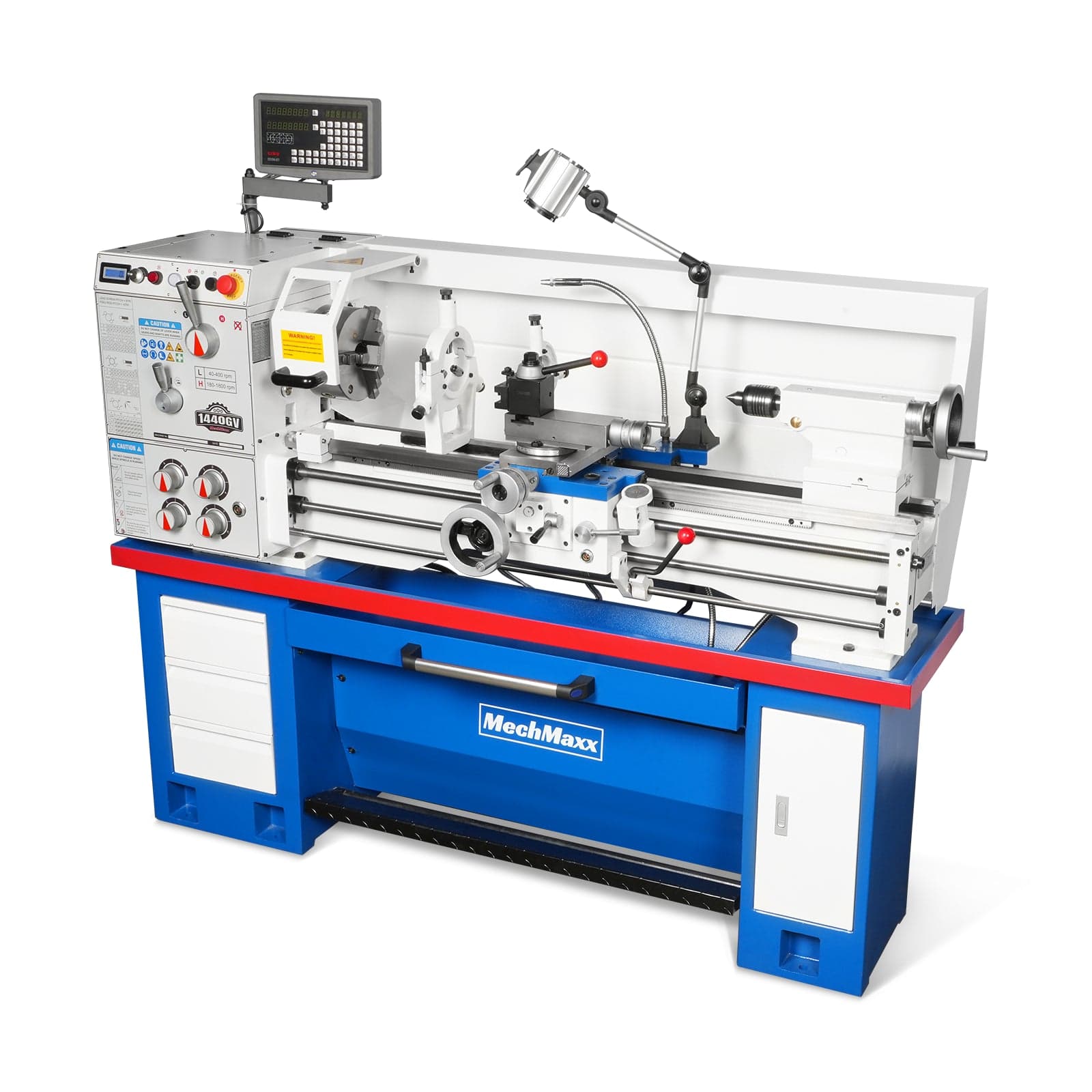

14" x 40" Industrial Metal Lathe Machine with Variable Speed DRO Gunsmith Gearhead Precision Turning Drilling Belt Drive 1440GV
14''-16''Swing Lathes£6,478.90
Indicative price — contact our team to confirm and quote
- No obligation
- Fast response
- Expert advice
220 V equipment — generally workable in the UK
This unit is specified at 220 V, against UK mains of 230 V. That difference is within the tolerance of most equipment. Where the specification also shows 60 Hz, motors and timer circuits may behave differently on a 50 Hz supply — ask us if the application is sensitive to either.
Supplied to trade buyers only. Because this item is not UK supply specification, we supply it to businesses specifying it for a known application rather than to consumers. Tell us the installation and we will confirm what you need before you order.
Specification
Specification Value
Swing Over Bed
14 in (356 mm)
Swing Over Cross Slide
8-13/16 in (224 mm)
Swing Over Gap
19-3/4 in (502 mm)
Distance Between Centers
40 in (1016 mm)
Bed Width
7.38 in (187 mm)
Spindle Bore
2 in (51 mm)
Spindle Mount
D1-5 Camlock
Spindle Taper
MT6
Tailstock Taper
MT4
Tailstock Quill Diameter
1.26 in (32 mm)
Tailstock Quill Travel
4 in (102 mm)
Cross Slide Travel
6-11/16 in (170 mm)
Compound Rest Travel
3 in
Motor Power
3 HP
Motor Type
AC Motor with Variable Frequency Drive
Drive Type
Belt Drive
Voltage
220V
Phase
1-Phase
Frequency
60 Hz
Amperage
20 A
Speed Adjustment
Infinitely Variable
Spindle Speed Range
40 – 1800 RPM
Longitudinal Feed Rate
0.002 – 0.046 in/rev (IPR)
Cross Feed Rate
0.0007 – 0.0187 in/rev (IPR)
Inch Threads
4 – 56 TPI
Metric Threads
0.4 – 7.0 mm pitch
Machine Footprint (W × D)
72 × 24 in (1829 × 610 mm)
Overall Dimensions (L × W × H)
76 × 30 × 60 in (1930 × 762 × 1524 mm)
Net Weight
1800 lb (816 kg)
Shipping Dimensions
78 × 48 × 72 in (1981 × 1219 × 1829 mm)
Shipping Weight
1900 lb (861 kg)
Liftgate Compatible
Yes
Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
| Phase | 1-Phase |
|---|---|
| Voltage | 220V |
| Amperage | 20 A |
| Bed Width | 7.38 in (187 mm)(187 mm (187 mm)) |
| Frequency | 60 Hz |
| Drive Type | Belt Drive |
| Motor Type | AC Motor with Variable Frequency Drive |
| Net Weight | 1800 lb (816 kg)(816 kg (816 kg)) |
| Motor Power | 3 HP(2.24 kW) |
| Inch Threads | 4 – 56 TPI |
| Spindle Bore | 2 in (51 mm)(50.8 mm (51 mm)) |
| Specification | Specification Value |
| Spindle Mount | D1-5 Camlock |
| Spindle Taper | MT6 |
| Metric Threads | 0.4 – 7.0 mm pitch |
| Swing Over Bed | 14 in (356 mm)(356 mm (356 mm)) |
| Swing Over Gap | 19-3/4 in (502 mm) |
| Cross Feed Rate | 0.0007 – 0.0187 in/rev (IPR)(0.0007 – 0.475 mm/rev (IPR)) |
| Shipping Weight | 1900 lb (861 kg)(862 kg (861 kg)) |
| Tailstock Taper | MT4 |
| Speed Adjustment | Infinitely Variable |
| Cross Slide Travel | 6-11/16 in (170 mm) |
| Liftgate Compatible | Yes |
| Shipping Dimensions | 78 × 48 × 72 in (1981 × 1219 × 1829 mm)(78 × 48 × 1.83 m (1981 × 1219 × 1829 mm)) |
| Spindle Speed Range | 40 – 1800 RPM |
| Compound Rest Travel | 3 in(76.2 mm) |
| Longitudinal Feed Rate | 0.002 – 0.046 in/rev (IPR)(0.002 – 1.17 mm/rev (IPR)) |
| Swing Over Cross Slide | 8-13/16 in (224 mm) |
| Tailstock Quill Travel | 4 in (102 mm)(102 mm (102 mm)) |
| Distance Between Centers | 40 in (1016 mm)(1.02 m (1016 mm)) |
| Tailstock Quill Diameter | 1.26 in (32 mm)(32 mm (32 mm)) |
| Machine Footprint (W × D) | 72 × 24 in (1829 × 610 mm)(72 × 610 mm (1829 × 610 mm)) |
| Overall Dimensions (L × W × H) | 76 × 30 × 60 in (1930 × 762 × 1524 mm)(76 × 30 × 1.52 m (1930 × 762 × 1524 mm)) |
Figures in brackets are metric conversions of the manufacturer’s stated imperial values, given for comparison. Where a tolerance matters, work from the original figure and confirm it with us.
Enquire about this product
14''-16''Swing Lathes

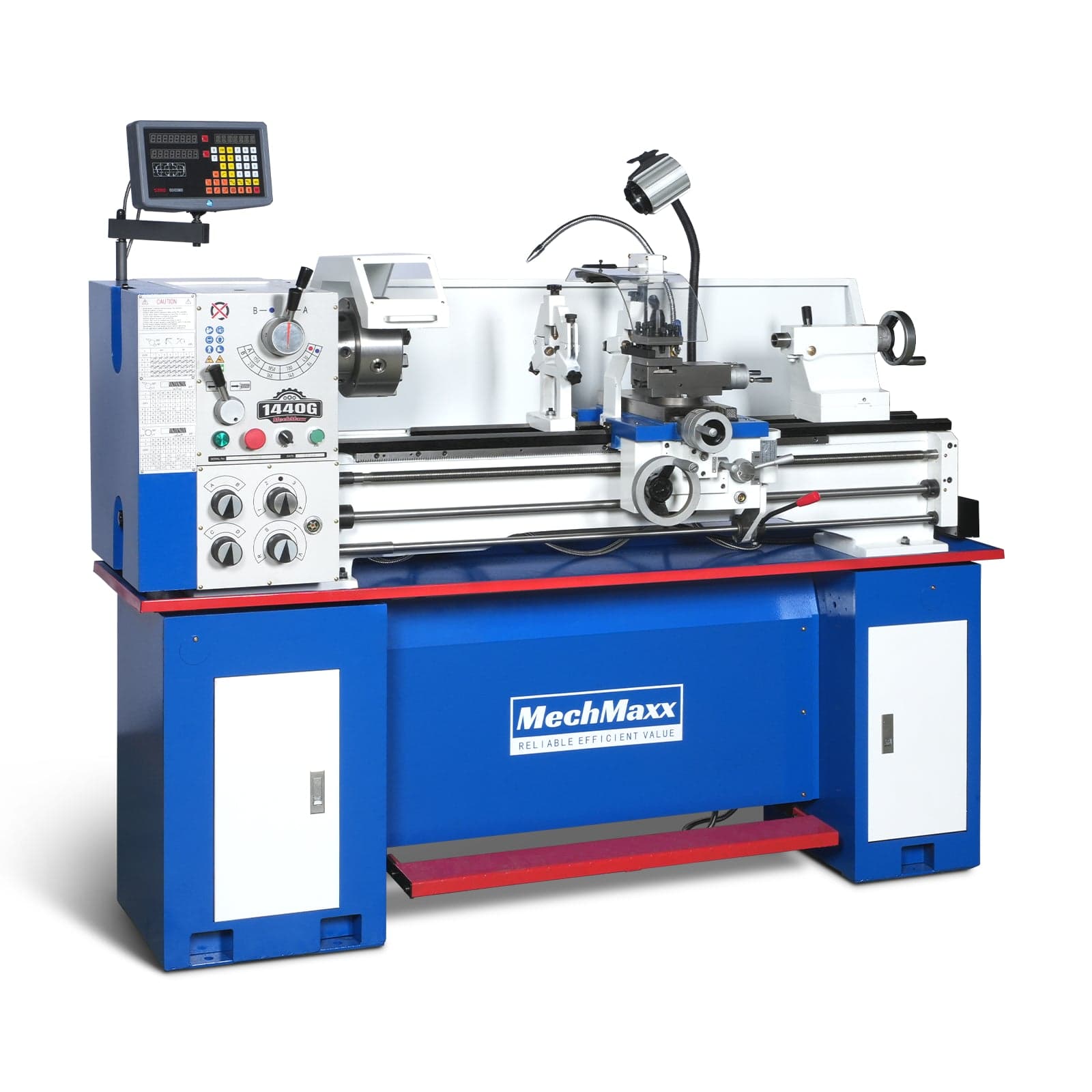

Industrial Metal Lathe Machine with DRO 14' x 40'' High Precision 84-1850 RPM Variable Speed Metal Working Machine 2HP Small Lathe with Stand 1440G
