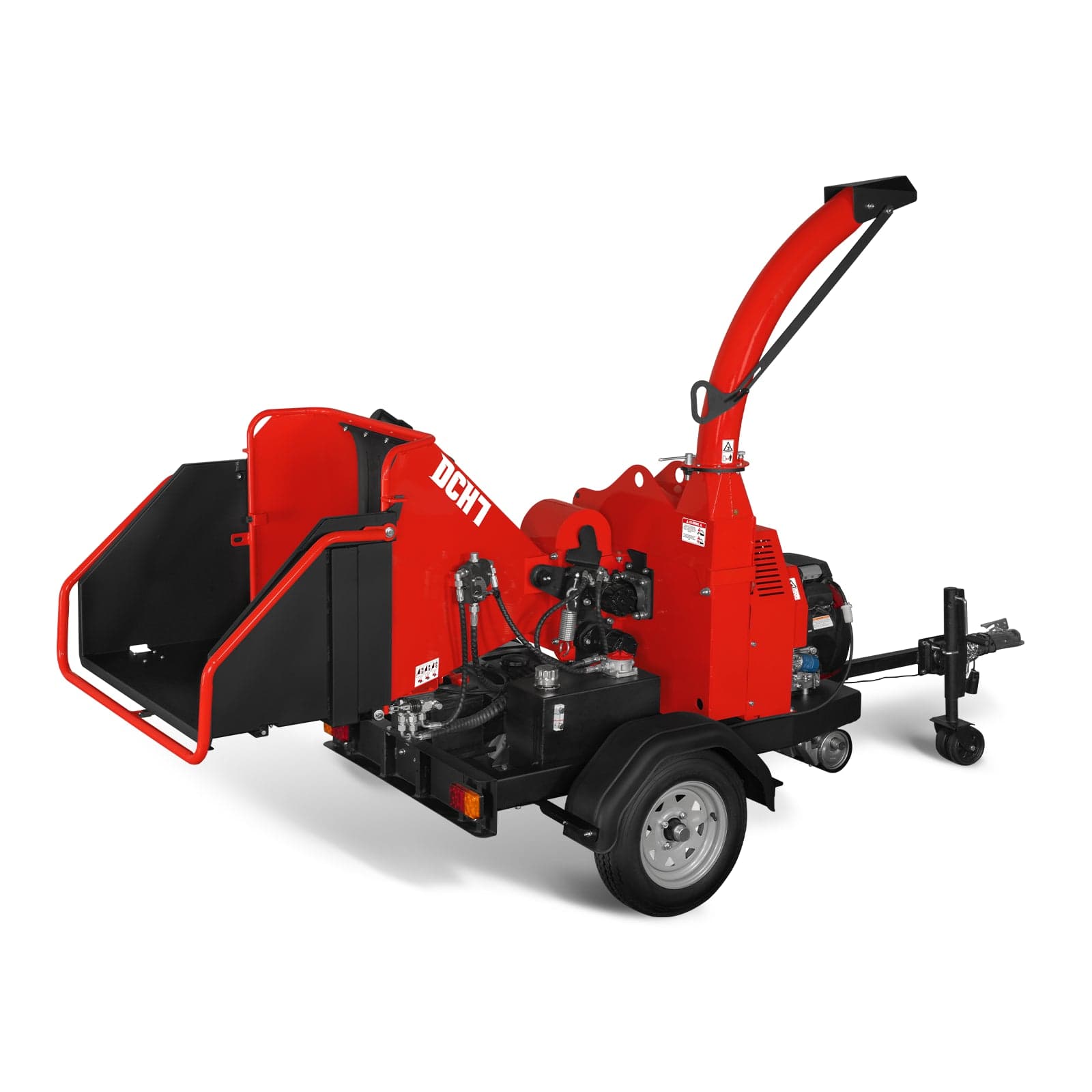

HONDA GX690 22HP 688cc Twin Cylinder Gasoline Engine Powered 7” Hydraulic Feeding Wood Chipper, DCH7
7 in Wood Chippers£6,259.81
Indicative price — contact our team to confirm and quote
- No obligation
- Fast response
- Expert advice
Engine
HONDA GX690
Blade
2 x Blades; 1 x Anvil
Engine Type
Air Cooled 4-Stroke OHV Petrol Engine，90° V-Twin Design, Horizontal Shaft
Blade Material
A8 （5Cr8MoVSi）
Displacement
688 cc；22 HP
Blades Type
Double Edge Blade
Rated Power
13.0 kw / 3600 RPM
Flywheel System
Open Top Flywheel 26 in x 1 in Twin
Max. Net Torque
48.3 N·m / 2500 RPM
Discharge Chute
360 Degree Rotating
Fuel Capacity
3.17 gal
Emergency Stop
Stop Bar
Recommended Oil
SAE 10W-30 Classification SE or Higher
Towing Length
Tow Bar With 2 in Coupler
Hydraulic Tank
6.87 gal
Wheel
5.3-12 Tubeless
Starting
Electric Starting
Wheelbase
52.5 in
Battery
36Ah 12V Lead-Acid Battery
Axle
Damping Torsion Axle
Ignition System
CDI
Max. Speed
50 mph
Governor System
Mechanical Centrifugal Type
Chassis
Channel Steel Welded Frame
Belt
2 x V-Belts
Package Method
Iron Fram With Black Film
Belts Material
Kevlar
Weight (N.W./G.W.)
1389 / 1587 lbs
Clutch
Centrifugal Clutch
Product Size (L*W*H)
137 x 55 x 90 in
Cutting Method
Disc
Packing Size (L*W*H)
87 x 46 x 51 in
Max. Chipping Dia.
7 in
Machine Warranty
2 Years
Feed Roller
7.5 in x 6.5 in
Engine Warranty
2 Years
Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
| Axle | Damping Torsion Axle |
|---|---|
| Belt | 2 x V-Belts |
| Blade | 2 x Blades; 1 x Anvil |
| Wheel | 5.3-12 Tubeless |
| Clutch | Centrifugal Clutch |
| Engine | HONDA GX690 |
| Battery | 36Ah 12V Lead-Acid Battery |
| Chassis | Channel Steel Welded Frame |
| Starting | Electric Starting |
| Wheelbase | 52.5 in(1.33 m) |
| Max. Speed | 50 mph(80.5 km/h) |
| Blades Type | Double Edge Blade |
| Engine Type | Air Cooled 4-Stroke OHV Petrol Engine, 90° V-Twin Design, Horizontal Shaft |
| Feed Roller | 7.5 in x 6.5 in(191 mm x 165 mm) |
| Rated Power | 13.0 kw / 3600 RPM |
| Displacement | 688 cc；22 HP(688 cc；16.4 kW) |
| Fuel Capacity | 3.17 gal(12 L) |
| Towing Length | Tow Bar With 2 in Coupler(Tow Bar With 50.8 mm Coupler) |
| Belts Material | Kevlar |
| Blade Material | A8 （5Cr8MoVSi） |
| Cutting Method | Disc |
| Emergency Stop | Stop Bar |
| Hydraulic Tank | 6.87 gal(26 L) |
| Package Method | Iron Fram With Black Film |
| Discharge Chute | 360 Degree Rotating |
| Flywheel System | Open Top Flywheel 26 in x 1 in Twin(Open Top Flywheel 660 mm x 25.4 mm Twin) |
| Governor System | Mechanical Centrifugal Type |
| Ignition System | CDI |
| Max. Net Torque | 48.3 N·m / 2500 RPM |
| Recommended Oil | SAE 10W-30 Classification SE or Higher |
| Max. Chipping Dia. | 7 in(178 mm) |
| Packing Size (L*W*H) | 87 x 46 x 51 in(2,210 × 1,168 × 1,295 mm) |
| Product Size (L*W*H) | 137 x 55 x 90 in(3,480 × 1,397 × 2,286 mm) |
| Weight (net / gross) | 1389 / 1587 lbs(630 / 720 kg) |
Figures in brackets are metric conversions of the manufacturer’s stated imperial values, given for comparison. Where a tolerance matters, work from the original figure and confirm it with us.
Enquire about this product
7 in Wood Chippers

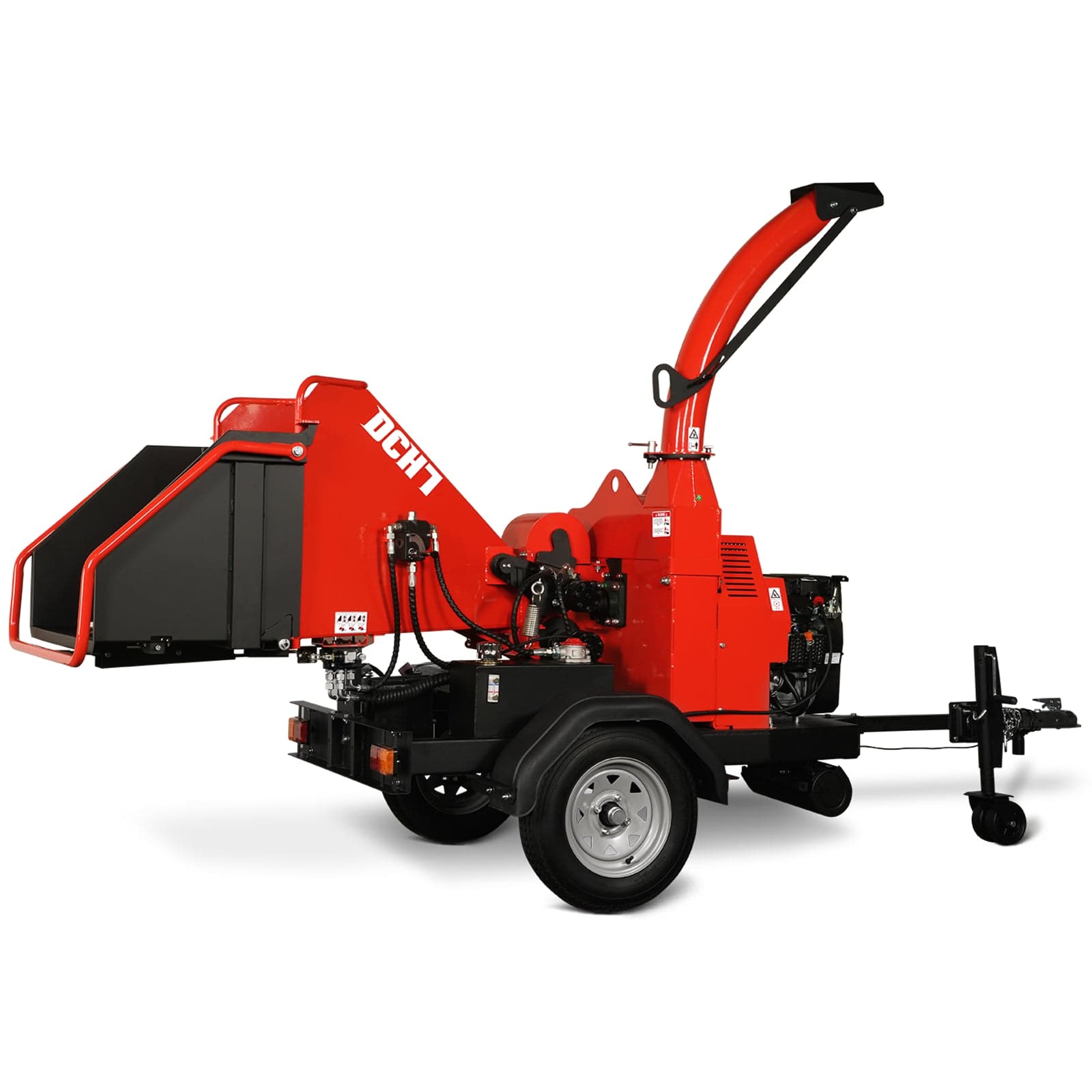

25hp 750cc Twin Cylinder ZONSEN Petrol Engine 7” Hydraulic Feeding Wood Chipper, DCH7
£4,769.20ex VAT
Request a quote for volume pricing
7 in Wood Chippers

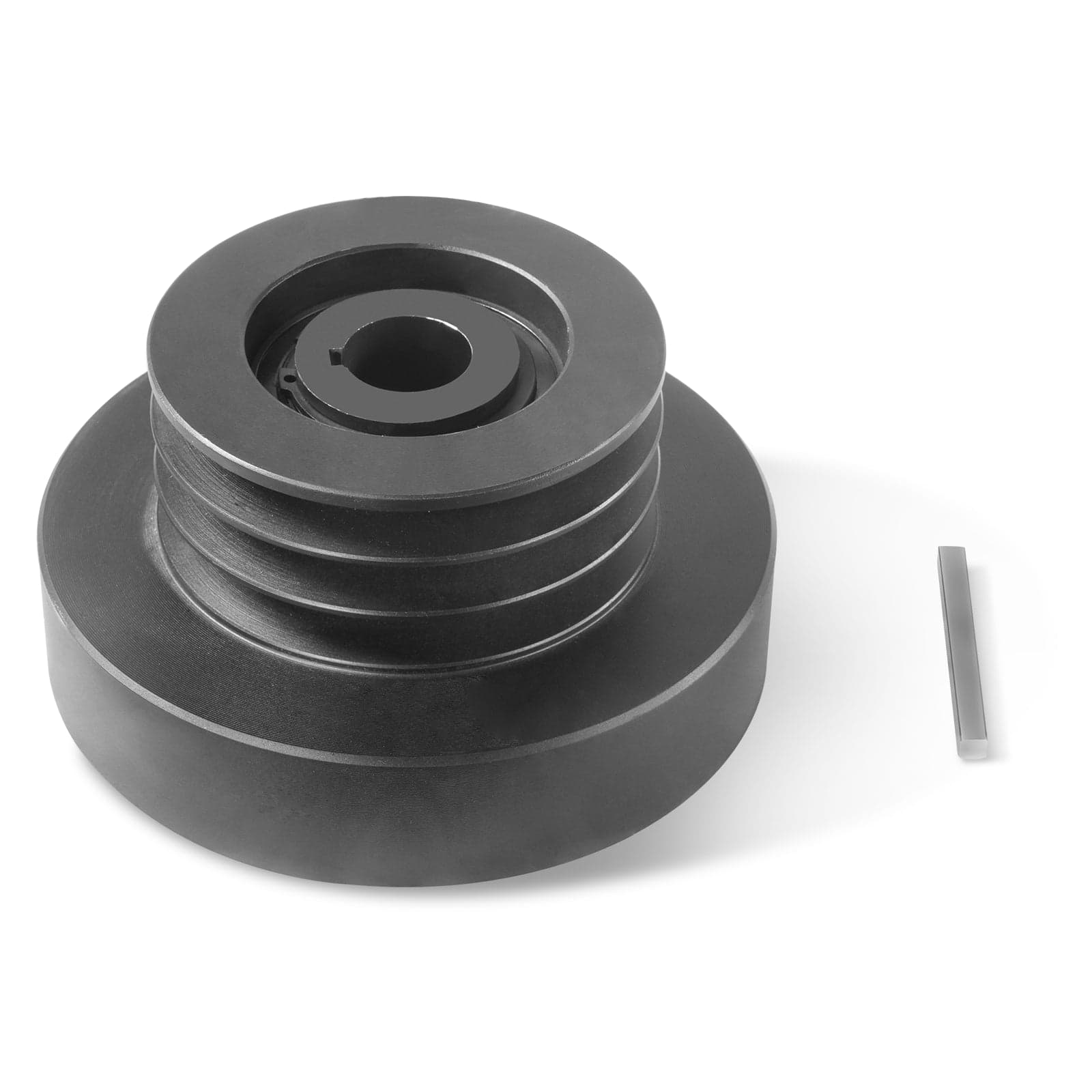

Clutch for HONDA 7” Hydraulic Feeding Wood Chipper, DCH7 (SKU: 110700H)
£119.38ex VAT
Request a quote for volume pricing
7 in Wood Chippers

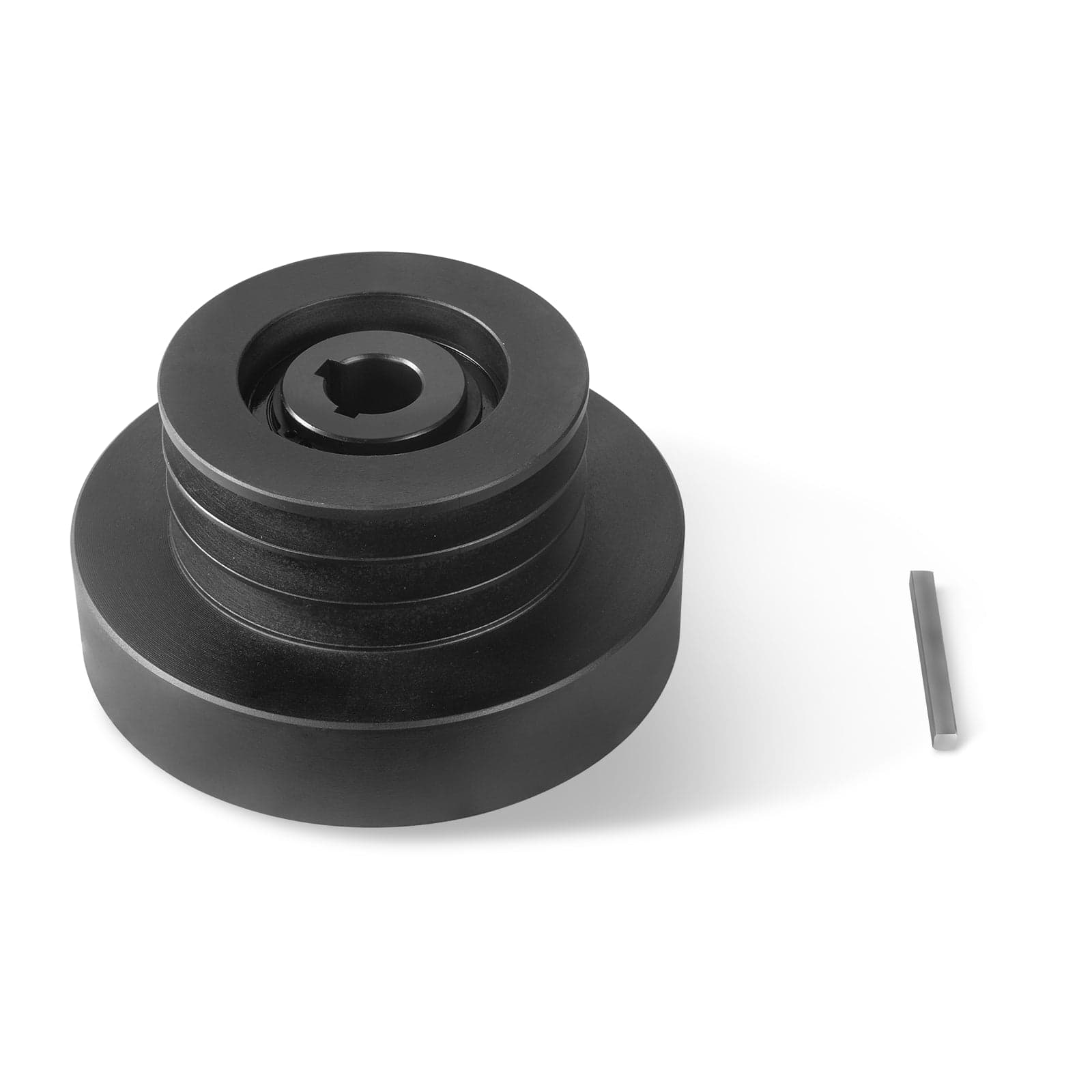

Clutch for ZONSEN 7” Hydraulic Feeding Wood Chipper, DCH7 (SKU: 110700)
£111.79ex VAT
Request a quote for volume pricing
7 in Wood Chippers

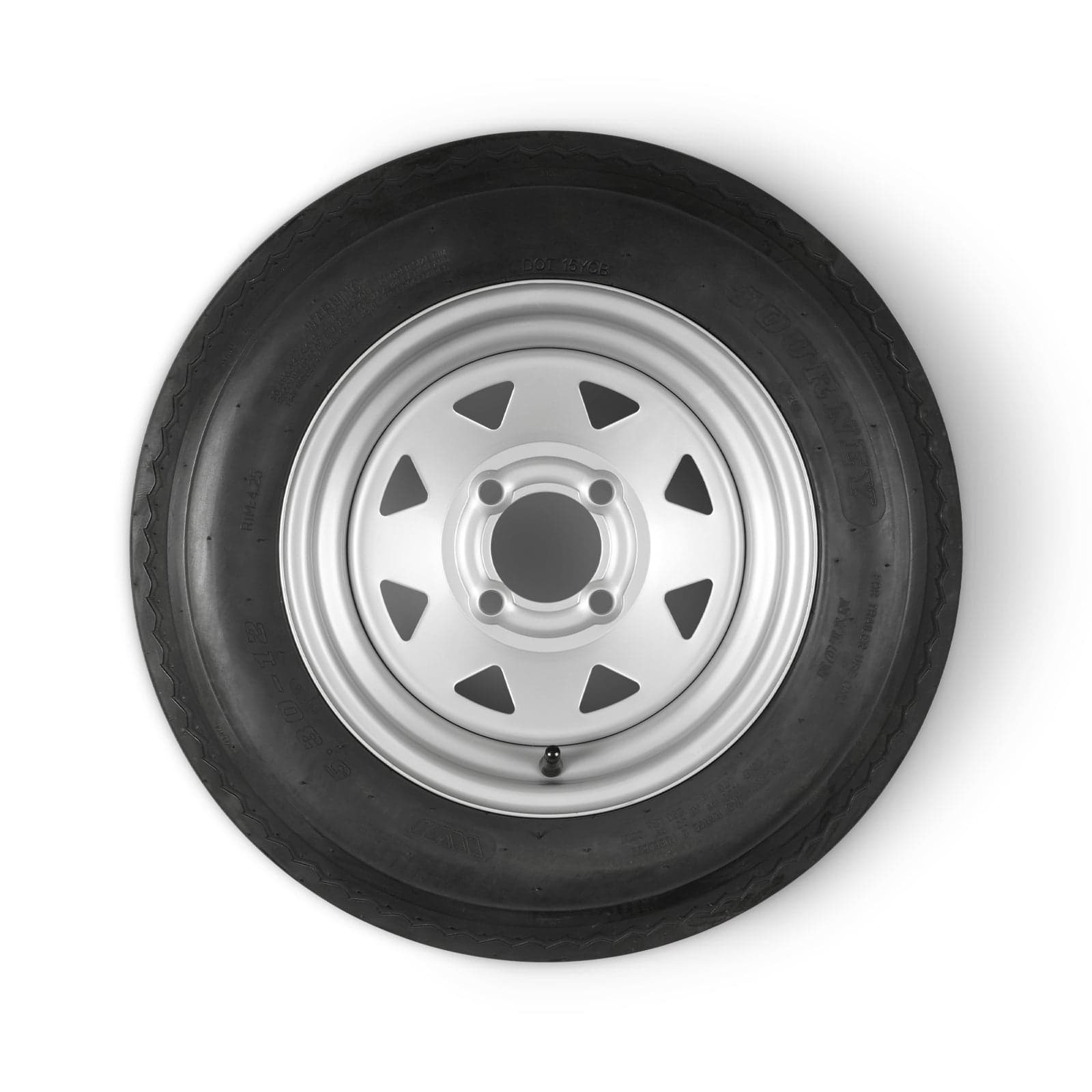

Rear Tire for Wood Chipper DCH7 ( SKU: 110700; 110700H）
