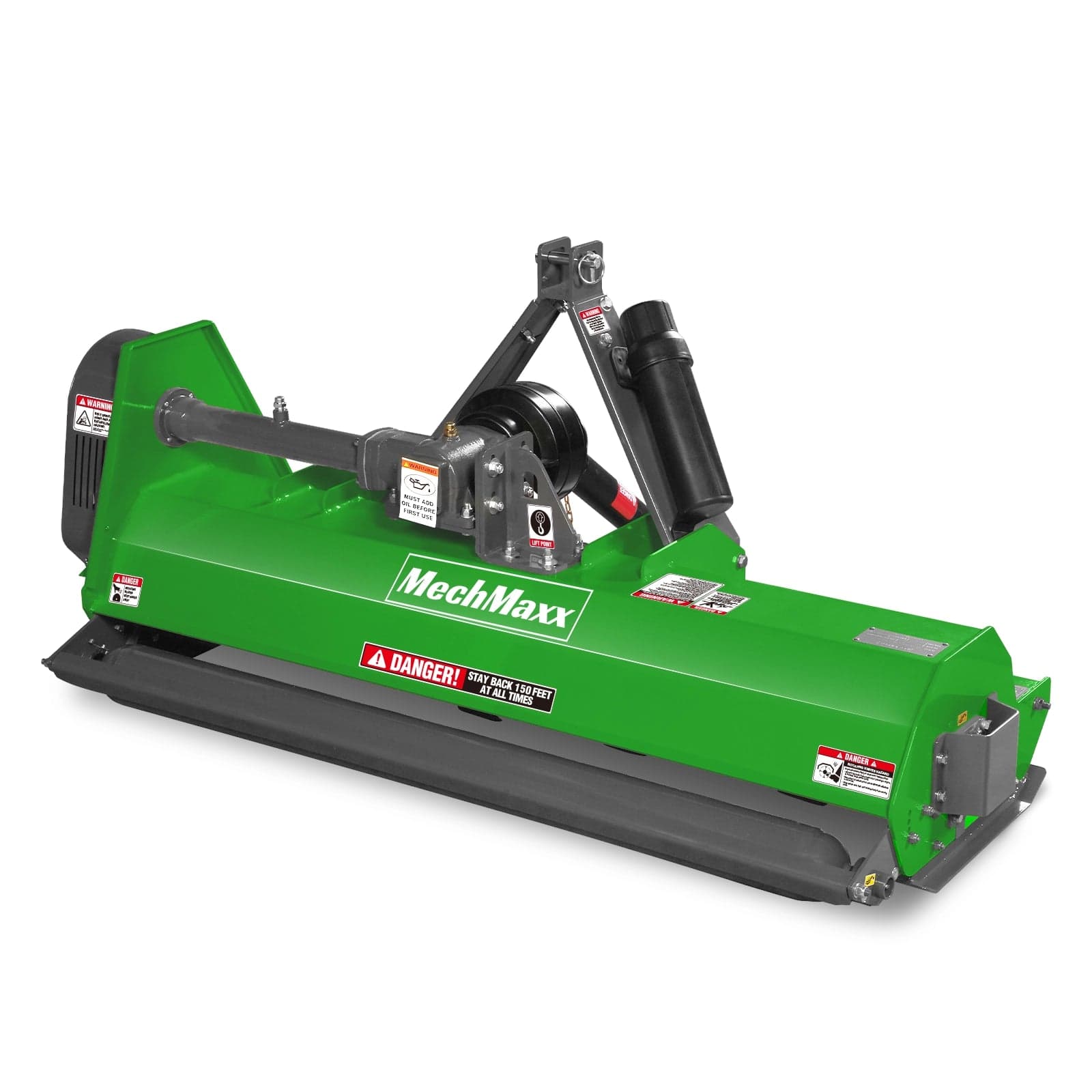

60'' Light-duty Flail Mower 3 Point 15-35HP , PTO Driven, EFS60

60'' Light-duty Flail Mower 3 Point 15-35HP , PTO Driven, EFS60

Standard Ditch Bank Flail Mowers

£1,414.35

Indicative price — contact our team to confirm and quote

  • No obligation
  • Fast response
  • Expert advice
Quantity
UK BasedExpert AdviceFree QuoteTechnical Support
Share: Email

Engine Power Required
15-35HP
Drive Type
Belt drive
Working Width
60in
Number of Belts
3
Overall Width
65in
Belt Size
V Belt 13 x 1041
Blade Ground Clearance
0.6in-1.8in
Drive Belt Tensioner
Yes
Max. Cutting Diameter
Depends On The Type Of Grass
Deck Thickness
0.16in
Number Of Blades
24
Side Plate Thickness
0.24in
Blade Type
Hammer
PTO Shaft RPM
540 RPM
Size Of Blades
3.5 x 3 x 1.6in
Driveline Shaft Length
T5-LF-31 with shear bolt ; 31- 43in
Blade Weight
0.8lbs
Spline End
1.375in z6
Blade （Tines）Material
Cast Steel
3-Point Hitch
CAT 1
Rotor Bearing
SKF bearing
Tractor Mount
Reversible
Rotor Diameter
3in
Gearbox Oil Type
85W-90
Rotor Swing Diameter
11in
Dimensions (L x W x H)
65 x 30 x 28in
Rotor Thickness
0.3in
Finish
Powder Coat Paint Galvanized Steel
Rotor Shaft Speed
2958 rpm
Warranty
1 year
Blade Speed
142 ft/s
Weight (N.W./G.W.)
406/503 lbs

Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
