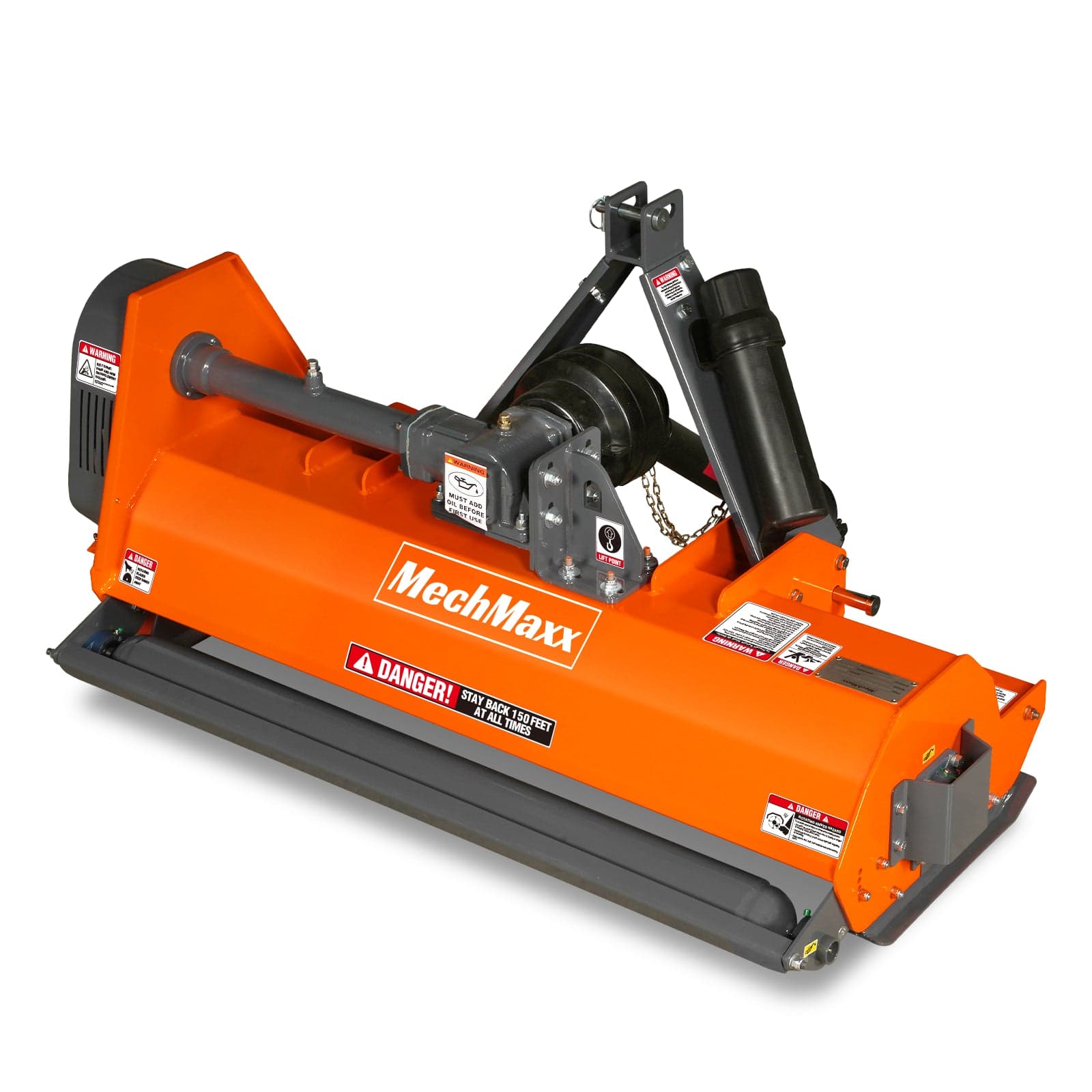

48'' Light-duty Flail Mower 3 Point 15-35HP , PTO Driven, EFS48

48'' Light-duty Flail Mower 3 Point 15-35HP , PTO Driven, EFS48

Standard Ditch Bank Flail Mowers

£1,118.50

Indicative price — contact our team to confirm and quote

  • No obligation
  • Fast response
  • Expert advice
Quantity
UK BasedExpert AdviceFree QuoteTechnical Support
Share: Email

Engine Power Required
15-35HP
Drive Type
Belt drive
Working Width
48in
Number Of Belts
3
Overall Width
56in
Belt Size
V Belt 13X1041
Blade Ground Clearance
0.6in-1.8in
Drive Belt Tensioner
yes
Max. Cutting Diameter
Depends On The Type Of Grass
Deck Material
0.16in
Number Of Blades
20
Side Plate Material
0.24in
Blade Type
Hammer
PTO Shaft RPM
540 RPM
Size Of Blades
3.5 X 3 X 1.6in
Driveline Shaft Length
T5-LF-31 with shear bolt ；31in- 43in
Blade Weight
0.8lbs
Spline End
1.375in z6
Blade （Tines）Material
Cast Steel
3-Point Hitch
CAT 1
Rotor Bearing
SKF bearing
Gearbox Oil Type
85W-90
Rotor Diameter
3in
Dimensions (L x W x H)
57 X 30 X 28in
Rotor Swing Diameter
11in
Finish
Powder Coating
Rotor Thickness
0.3in
Warranty
1 year
Rotor Shaft Speed
2958 rpm
Weight (N.W./G.W.)
379/470 lbs
Blade Speed
142 ft/s

Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
