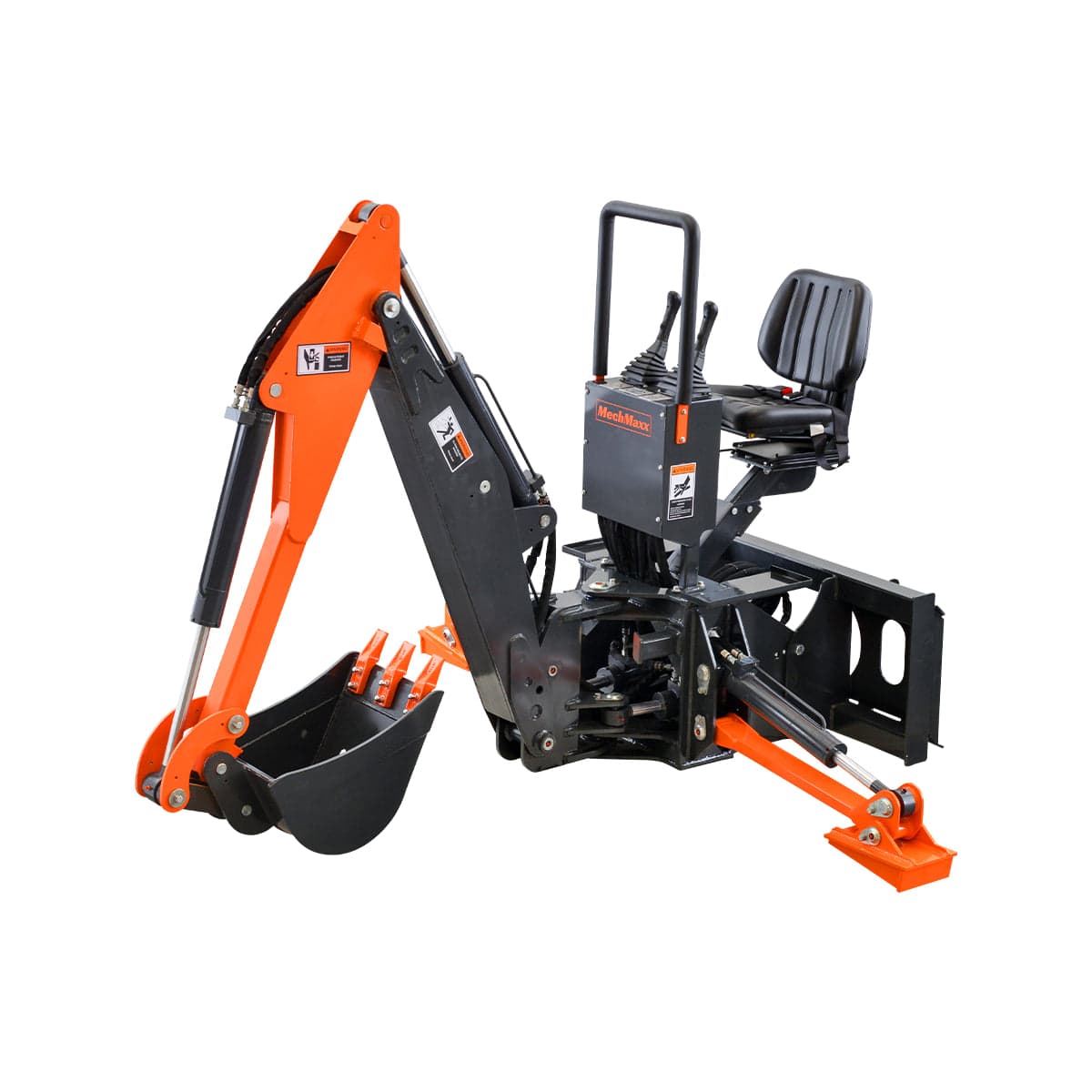

Skid Steer Backhoe 8ft Digging Depth, 16” Bucket Included,70° Left/Right Swivel Rotation SBH50
Rotary Backhoe£4,470.31
Indicative price — contact our team to confirm and quote
- No obligation
- Fast response
- Expert advice
Max. Digging Depth
96in
Flow Range Low
5.3gal/min
Max. Working Height
113in
Flow Range High
13.2gal/min
Max. Working Length
129in
Working Pressure
3050psi
Max. Loading Height
59in
Hydraulic Cylinders:
2.5 x 13in
Distance To Ground
9in
Finish
Durable Powder Coated finish
Rotating Angle L&R
±70°
Product Weight:
1433lbs
Bucket Fliping Angle
186°
Shipping Weight:
1700lbs
Digging Force
5500-9750lbs
Package Method
Iron Frame with film
Frame Width
47in
Packing Size
91 x 80 x 32in (L x W x H)
Bucket Size
16in
Warranty
1year
Bucket Capacity
1.4cu-ft
Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
| Finish | Durable Powder Coated finish |
|---|---|
| Bucket Size | 16in(406 mm) |
| Frame Width | 47in(1.19 m) |
| Packing size | 91 x 80 x 32in (L x W x H)(91 x 80 x 813 mm (L x W x H)) |
| Digging Force | 5500-9750lbs(2,495 – 4,423 kg) |
| Flow Range Low | 5.3gal/min(20.1 L/min) |
| Package Method | Iron Frame with film |
| Product Weight | 1433lbs(650 kg) |
| Bucket Capacity | 1.4cu-ft |
| Flow Range High | 13.2gal/min(50 L/min) |
| Shipping Weight | 1700lbs(771 kg) |
| Working Pressure | 3050psi(210 bar) |
| Distance To Ground | 9in(229 mm) |
| Max. Digging Depth | 96in(2.44 m) |
| Rotating Angle L&R | ±70° |
| Hydraulic Cylinders | 2.5 x 13in(63.5 × 330 mm) |
| Max. Loading Height | 59in(1.5 m) |
| Max. Working Height | 113in(2.87 m) |
| Max. Working Length | 129in(3.28 m) |
| Bucket Fliping Angle | 186° |
Figures in brackets are metric conversions of the manufacturer’s stated imperial values, given for comparison. Where a tolerance matters, work from the original figure and confirm it with us.
