Mini Compact Excavator Kubota D722 Engine, 65.7” Max. Digging Depth, 2700 LBS Operating Weight, MEC12
1.2 Ton Mini Excavator£12,520.36
Indicative price — contact our team to confirm and quote
- No obligation
- Fast response
- Expert advice
ENGINE
Model
Kubota D722
Rated speed
2500rpm
No.Of Cylinders
3
Displacement
43.88in³
Stroke
2.68in
Engine Output
13.7hp
Bore
2.64in
Warranty for Engine
2-Year
TRAVEL SYSTEM
Travel Speed – High
2.24 mile/h
Ground Clearance
15.9in
Travel Speed – Low
1.12 mile/h
Ground Pressure
5.1psi
Maximum Traction Force – Low Speed
2923lbf
Gradeability – Maximum
Maximum 30 degrees
WEIGHT
Operating Weight
2700lb
HYDRAULIC SYSTEM
Type
Load Sensing Hydraulics with Variable Displacement Piston Pump
Max.Discharge Flow
4.65 gpm
SWING SYSTEM
Swing Speed
8rpm
Tail Swing Radius
48.1in
DIGGING FORCE（ISO6015)
Boom Length
52in
Bucket Digging Force
1960lbf
Arm length
35in
Arm Digging Force
875lbf
REFILING CAPACITIES & LUBRICATIONS
Fuel Tank
2.4gal
Hydraulic Oil Tank
3.2gal
Cooling System
1.1gal
System Capacity
4.8gal
Engine Oil
0.7gal
BUCKET
Bucket Capacity
0.7 ft³
Bucket Width
15 in
SCOPE OF WORK
Max.Digging Height
111.2in
Min Turning Radius Of Working Device
48.1in
Max.Dumping Height
81.1in
Max. Lift Above Ground
5.5in
Max.Digging Depth
65.7in
Max. Drop Below Ground
8.9in
Max.Vertical Digging Depth
62.6in
Boom Swing – Left
53°
Max Digging Radius
119in
Boom Swing – Right
40°
Max.digging Radius At Ground Level
118.7in
DIMENSIONS
Transportation Length
92.4in/114.8in
Crawler Wheel Base
42.5in
Overall Width （Retracted/Expanded)
43.2in
Track Belt/Shoe Width
7in
Overall Height（To Top Of Cab）
89.5in
Track Length
55.5in
Counter Weight Ground Clearance
16.7in
Track Width（Retracted/Expanded)
34.5in/43.2in
Ground Clearance
15.9in
SERVICE
Package Method
Wood Case
Warranty for Machine
1 Year
Packing Size
91x40x98 in
Weight (N.W./G.W.)
2700/2978 lb
Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
| Bore | 2.64in(67.1 mm) |
|---|---|
| ENGINE | Model |
| Stroke | 2.68in(68.1 mm) |
| SERVICE | Package Method |
| Fuel Tank | 2.4gal(9.08 L) |
| Arm length | 35in(889 mm) |
| Engine Oil | 0.7gal(2.65 L) |
| Boom Length | 52in(1.32 m) |
| Rated speed | 2500rpm |
| Swing Speed | 8rpm |
| Bucket Width | 15 in(381 mm) |
| Displacement | 43.88in³(1.11 m³) |
| Packing size | 91x40x98 in(2,311 × 1,016 × 2,489 mm) |
| Track Length | 55.5in(1.41 m) |
| Engine Output | 13.7hp(10.2 kW) |
| Cooling System | 1.1gal(4.16 L) |
| Bucket Capacity | 0.7 ft³(0.213 m³) |
| Ground Pressure | 5.1psi(0.352 bar) |
| No.Of Cylinders | 3 |
| System Capacity | 4.8gal(18.2 L) |
| Ground Clearance | 15.9in(404 mm) |
| HYDRAULIC SYSTEM | Type |
| Operating Weight | 2700lb(1,225 kg) |
| Arm Digging Force | 875lbf(3.89 kN) |
| Max.Digging Depth | 65.7in(1.67 m) |
| Tail Swing Radius | 48.1in(1.22 m) |
| Crawler Wheel Base | 42.5in(1.08 m) |
| Hydraulic Oil Tank | 3.2gal(12.1 L) |
| Max Digging Radius | 119in(3.02 m) |
| Max.Digging Height | 111.2in(2.82 m) |
| Max.Discharge Flow | 4.65 gpm |
| Max.Dumping Height | 81.1in(2.06 m) |
| Boom Swing – Left | 53° |
| Boom Swing – Right | 40° |
| Bucket Digging Force | 1960lbf(8.72 kN) |
| Travel Speed – Low | 1.12 mile/h |
| Weight (net / gross) | 2700/2978 lb(1,225 / 1,351 kg) |
| Track Belt/Shoe Width | 7in(178 mm) |
| Transportation Length | 92.4in/114.8in(2.35 m/114.8in) |
| Travel Speed – High | 2.24 mile/h |
| Max. Drop Below Ground | 8.9in(226 mm) |
| Max. Lift Above Ground | 5.5in(140 mm) |
| Gradeability – Maximum | Maximum 30 degrees |
| Max.Vertical Digging Depth | 62.6in(1.59 m) |
| Counter Weight Ground Clearance | 16.7in(424 mm) |
| Overall Height（To Top Of Cab） | 89.5in(2.27 m) |
| Track Width（Retracted/Expanded) | 34.5in/43.2in(876 mm/43.2in) |
| Max.digging Radius At Ground Level | 118.7in(3.01 m) |
| Maximum Traction Force – Low Speed | 2923lbf(13 kN) |
| Min Turning Radius Of Working Device | 48.1in(1.22 m) |
| Overall Width （Retracted/Expanded) | 43.2in(1.1 m) |
Figures in brackets are metric conversions of the manufacturer’s stated imperial values, given for comparison. Where a tolerance matters, work from the original figure and confirm it with us.
Enquire about this product
1.2 Ton Mini Excavator

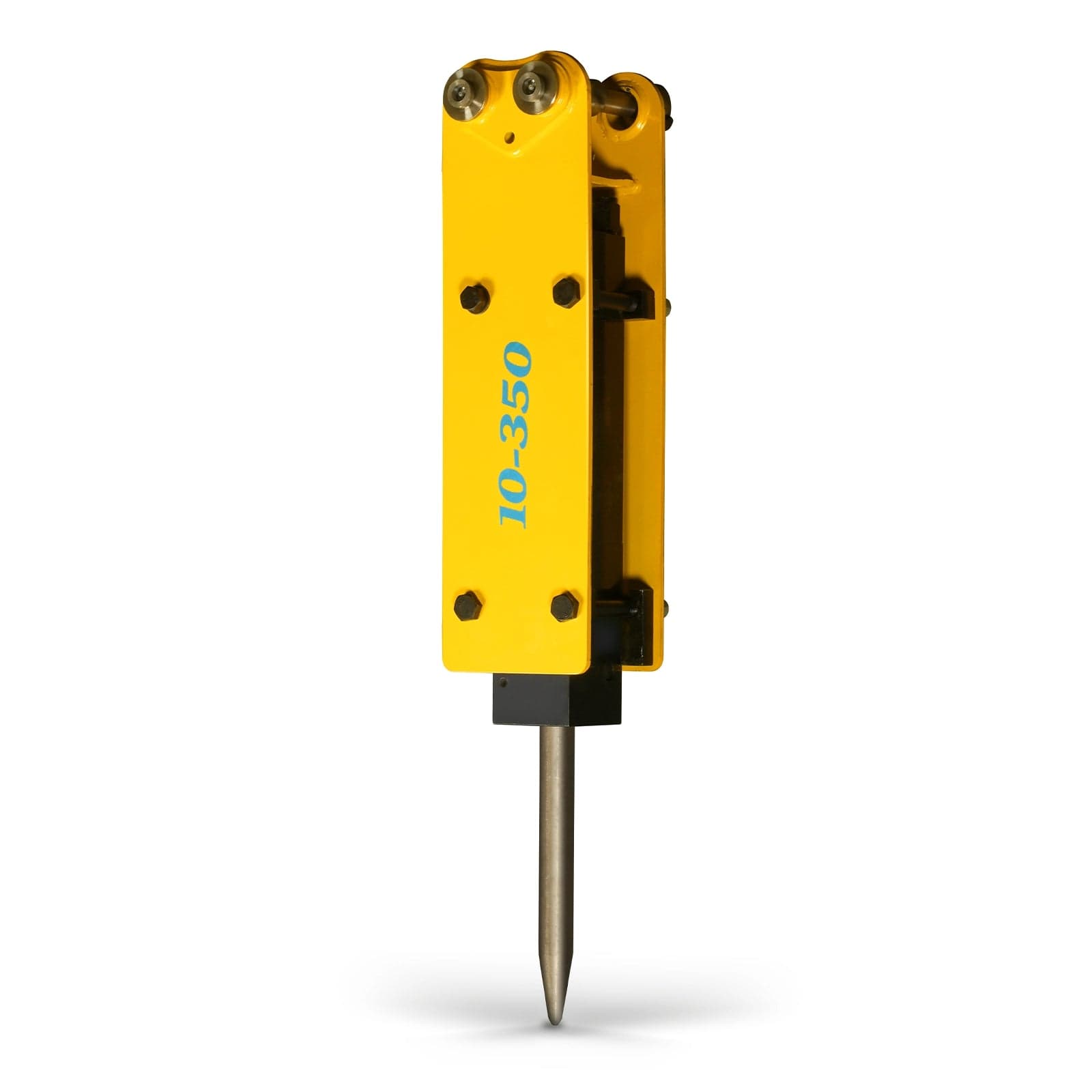

Hydraulic Hammer Breaker for Mini Compact Excavator ( SKU: 150530; 150531; 150532 )
£744.56ex VAT
Request a quote for volume pricing
1.2 Ton Mini Excavator

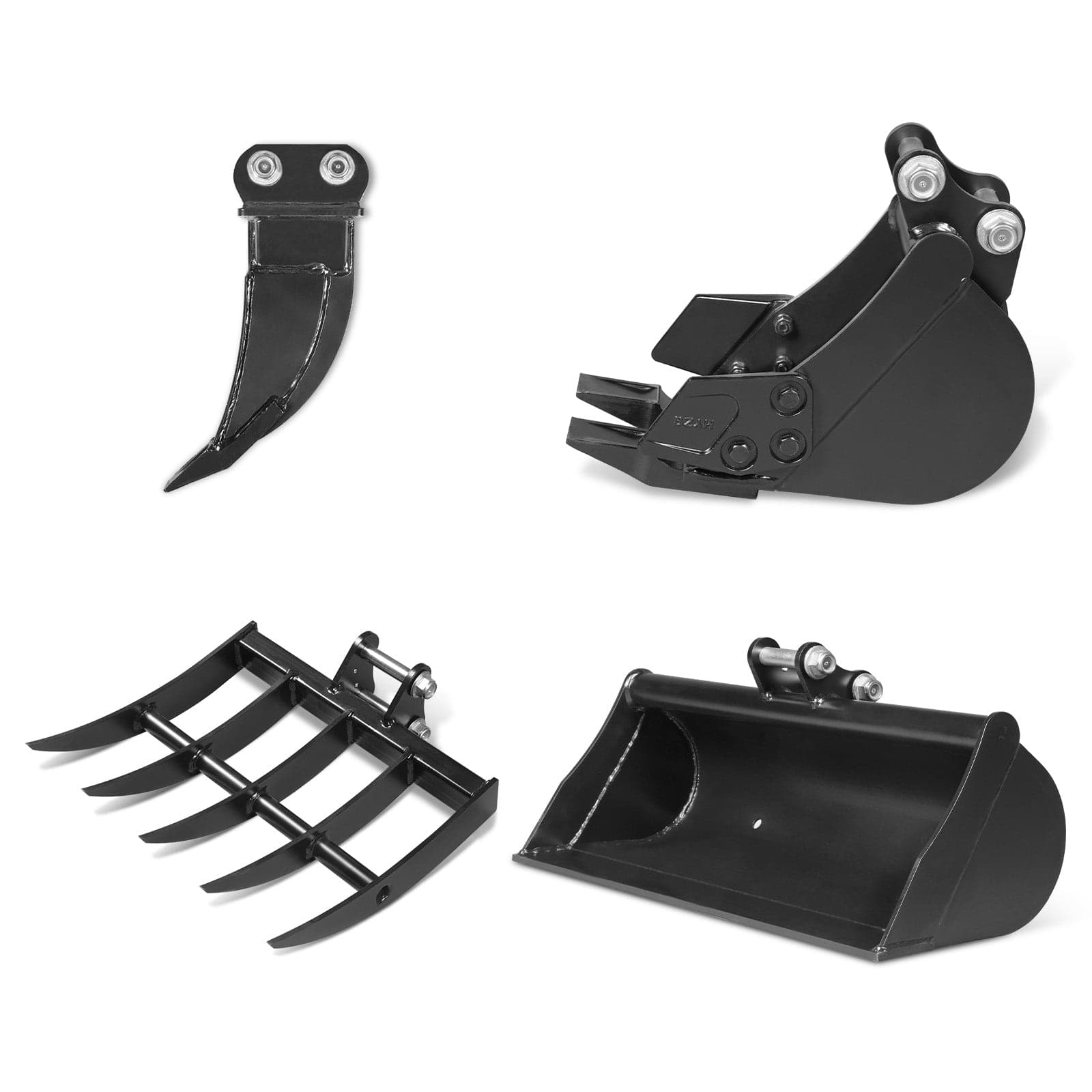

4-Piece Mini Excavator Attachment Set for Mini Compact Excavator ( SKU: 150530; 150531; 150532 )
£520.61ex VAT
Request a quote for volume pricing
1.2 Ton Mini Excavator

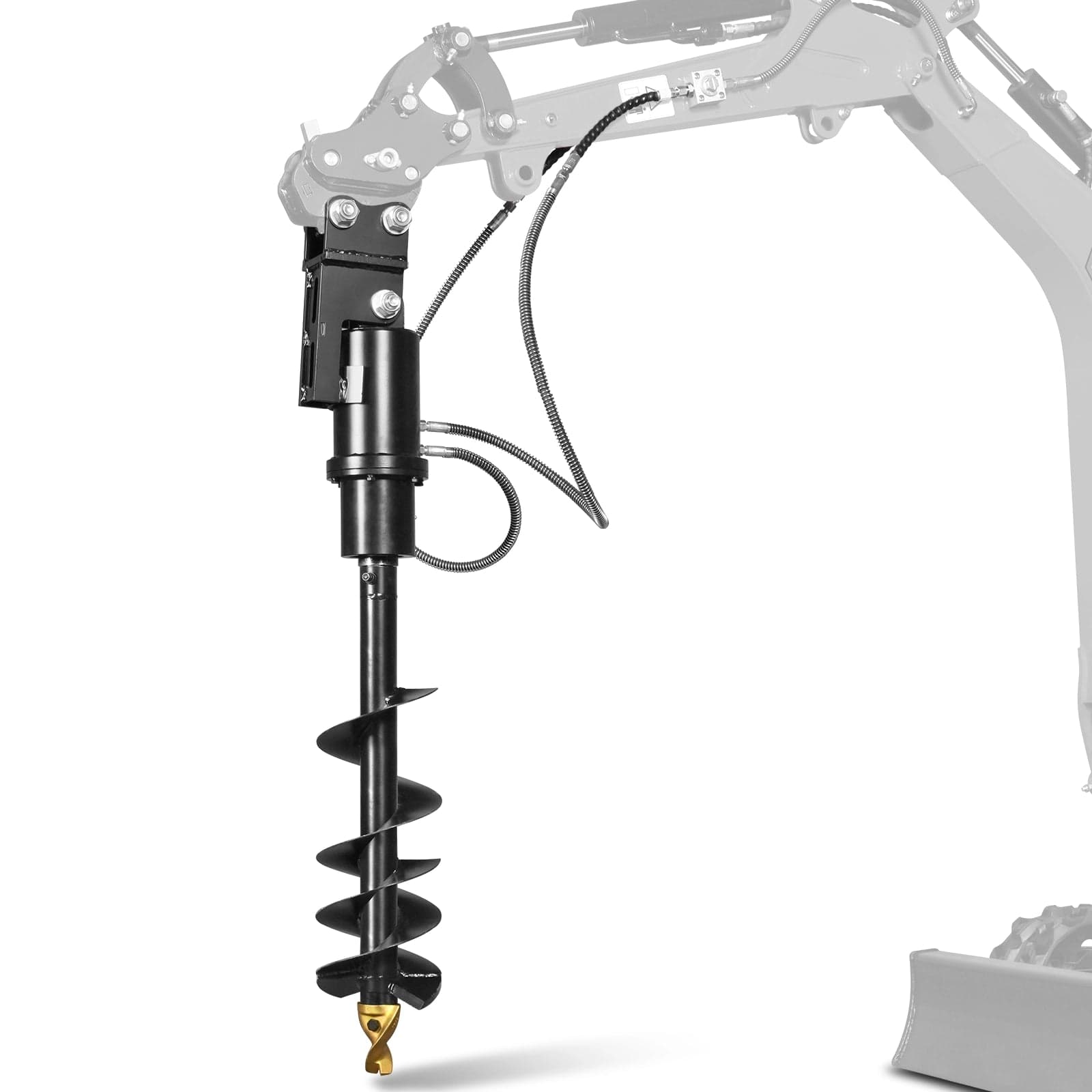

32x8" Auger Attachment for Mini Compact Excavator ( SKU: 150530; 150531; 150532 )
£446.78ex VAT
Request a quote for volume pricing
1.2 Ton Mini Excavator

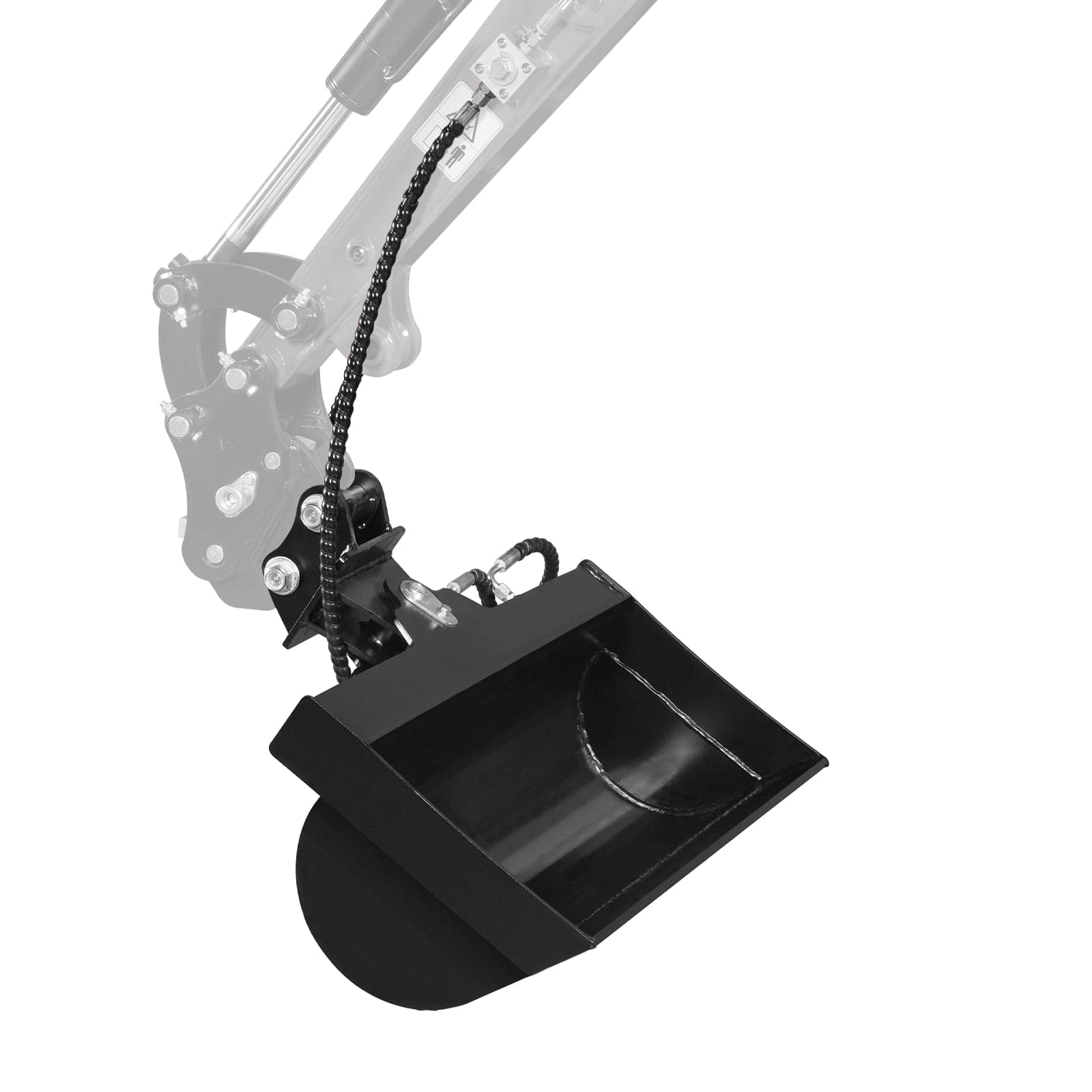

32" Tilt Bucket for Mini Compact Excavator MEC10/MEC12 ( SKU: 150530; 150531; 150532 )
