Mini Compact Excavator HONDA GX390 Engine, 65.7” Max. Digging Depth, 2280 LBS Operating Weight, MEC10
1.0 Ton Mini Excavator£6,488.39
Indicative price — contact our team to confirm and quote
- No obligation
- Fast response
- Expert advice
Standard Bucket Capacity
0.7 cu-ft
Auxiliary Std Flow
5.7 gal/min
Standard Bucket Width
15 in
Max. Tractive Force
3035 lbf
Max. Travel Speed
0.75 mile/h
Arm Digging Force
1191 lbf
Slewing Speed
11 rpm
Bucket Digging Force
1619 lbf
Max. Gradeability
30°
Rated Lift Capacity
728 lb
Track Ground Pressure
5.1 psi
Lift Radius
80 in
Hydraulic Oil Tank Capacity
3.96 gal
Operating Weight
2280 lb
Operating Range
Max.Digging Radius On Ground
119 in
Max. Vertical Digging Depth
63.3 in
Max. Digging Depth
65.7 in
Min. Turning Radius
46.8 in
Overall Operating Height (Fully Raised)
111.8 in
Max. Lifting Height Dozer Blade
5.9 in
Max. Digging Radius
121 in
Max. Depth Dozer Blade
7.4 in
Max. Unloading Height
81.8 in
Main Dimensions
Wheel Track
35.8 in
Track Height
12.6 in
Track Length
48.6 in
Transportation Length
92.5/113 in
Upper Chassis Ground Clearance
15.7 in
Height Of Seat To Ground
61.4 in
Counterweight Turning Radius
32.6 in
Overall Height
89.3 in
Chassis Width
37 in
Boom Swing-Right
40°
Track Width
7 in
Boom Swing-Left
53°
Engine
Model
Honda GX390
Max. Net Torque
26.5 N.m/2500 RPM
Displacement
389 cc; 11.7 HP
Fuel Tank Capacity
1.6 gal
Engine Type
4-stroke, overhead valve, single cylinder
Engine Oil Capacity
0.3 gal
Start Type
Electric start
Engine Oil Type
10W-30
Rated Power
8.7 KW/3600 RPM
Warranty
1 Year
Package
Package Method
Plywood Case
Weight (N.W./G.W.)
2100/2376 lb
Dimensions
91x40x98 in
Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
| Engine | Model |
|---|---|
| Package | Package Method |
| Dimensions | 91x40x98 in(2,311 × 1,016 × 2,489 mm) |
| Start Type | Electric start |
| Engine Type | 4-stroke, overhead valve, single cylinder |
| Lift Radius | 80 in(2.03 m) |
| Rated Power | 8.7 KW/3600 RPM |
| Track Width | 7 in(178 mm) |
| Wheel Track | 35.8 in(909 mm) |
| Displacement | 389 cc; 11.7 HP(389 cc; 8.72 kW) |
| Track Height | 12.6 in(320 mm) |
| Track Length | 48.6 in(1.23 m) |
| Chassis Width | 37 in(940 mm) |
| Slewing Speed | 11 rpm |
| Overall Height | 89.3 in(2.27 m) |
| Boom Swing-Left | 53° |
| Engine Oil Type | 10W-30 |
| Max. Net Torque | 26.5 N.m/2500 RPM |
| Boom Swing-Right | 40° |
| Operating Weight | 2280 lb(1,034 kg) |
| Arm Digging Force | 1191 lbf(5.3 kN) |
| Max. Gradeability | 30° |
| Max. Travel Speed | 0.75 mile/h |
| Auxiliary Std Flow | 5.7 gal/min(21.6 L/min) |
| Fuel Tank Capacity | 1.6 gal(6.06 L) |
| Max. Digging Depth | 65.7 in(1.67 m) |
| Engine Oil Capacity | 0.3 gal(1.14 L) |
| Max. Digging Radius | 121 in(3.07 m) |
| Max. Tractive Force | 3035 lbf(13.5 kN) |
| Min. Turning Radius | 46.8 in(1.19 m) |
| Rated Lift Capacity | 728 lb(330 kg) |
| Bucket Digging Force | 1619 lbf(7.2 kN) |
| Weight (net / gross) | 2100/2376 lb(953 / 1,078 kg) |
| Max. Unloading Height | 81.8 in(2.08 m) |
| Standard Bucket Width | 15 in(381 mm) |
| Track Ground Pressure | 5.1 psi(0.352 bar) |
| Transportation Length | 92.5/113 in(2,350 / 2,870 mm) |
| Max. Depth Dozer Blade | 7.4 in(188 mm) |
| Height Of Seat To Ground | 61.4 in(1.56 m) |
| Standard Bucket Capacity | 0.7 cu-ft |
| Hydraulic Oil Tank Capacity | 3.96 gal(15 L) |
| Max. Vertical Digging Depth | 63.3 in(1.61 m) |
| Counterweight Turning Radius | 32.6 in(828 mm) |
| Max.Digging Radius On Ground | 119 in(3.02 m) |
| Upper Chassis Ground Clearance | 15.7 in(399 mm) |
| Max. Lifting Height Dozer Blade | 5.9 in(150 mm) |
| Overall Operating Height (Fully Raised) | 111.8 in(2.84 m) |
Figures in brackets are metric conversions of the manufacturer’s stated imperial values, given for comparison. Where a tolerance matters, work from the original figure and confirm it with us.
Enquire about this product
1.0 Ton Mini Excavator
Mini Compact Excavator B&S VANGUARD 408cc 14hp Engine, 65.7” Max. Digging Depth, 2370 LBS Operating Weight, MEC10
£7,159.68ex VAT
Request a quote for volume pricing
1.0 Ton Mini Excavator
Hydraulic Hammer Breaker for Mini Compact Excavator ( SKU: 150530; 150531; 150532 )
£744.56ex VAT
Request a quote for volume pricing
1.0 Ton Mini Excavator
4-Piece Mini Excavator Attachment Set for Mini Compact Excavator ( SKU: 150530; 150531; 150532 )
£516.18ex VAT
Request a quote for volume pricing
1.0 Ton Mini Excavator

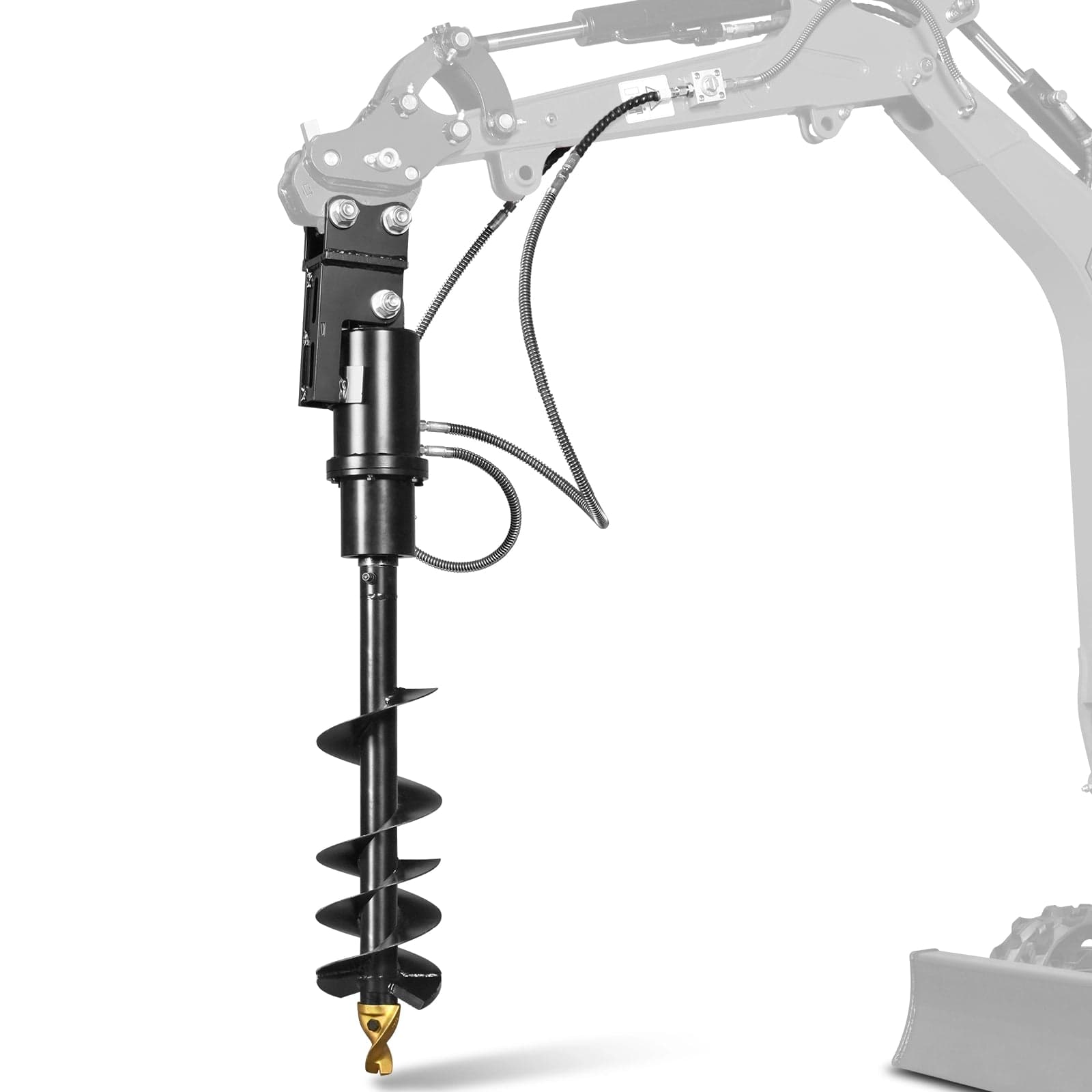

32x8" Auger Attachment for Mini Compact Excavator ( SKU: 150530; 150531; 150532 )
