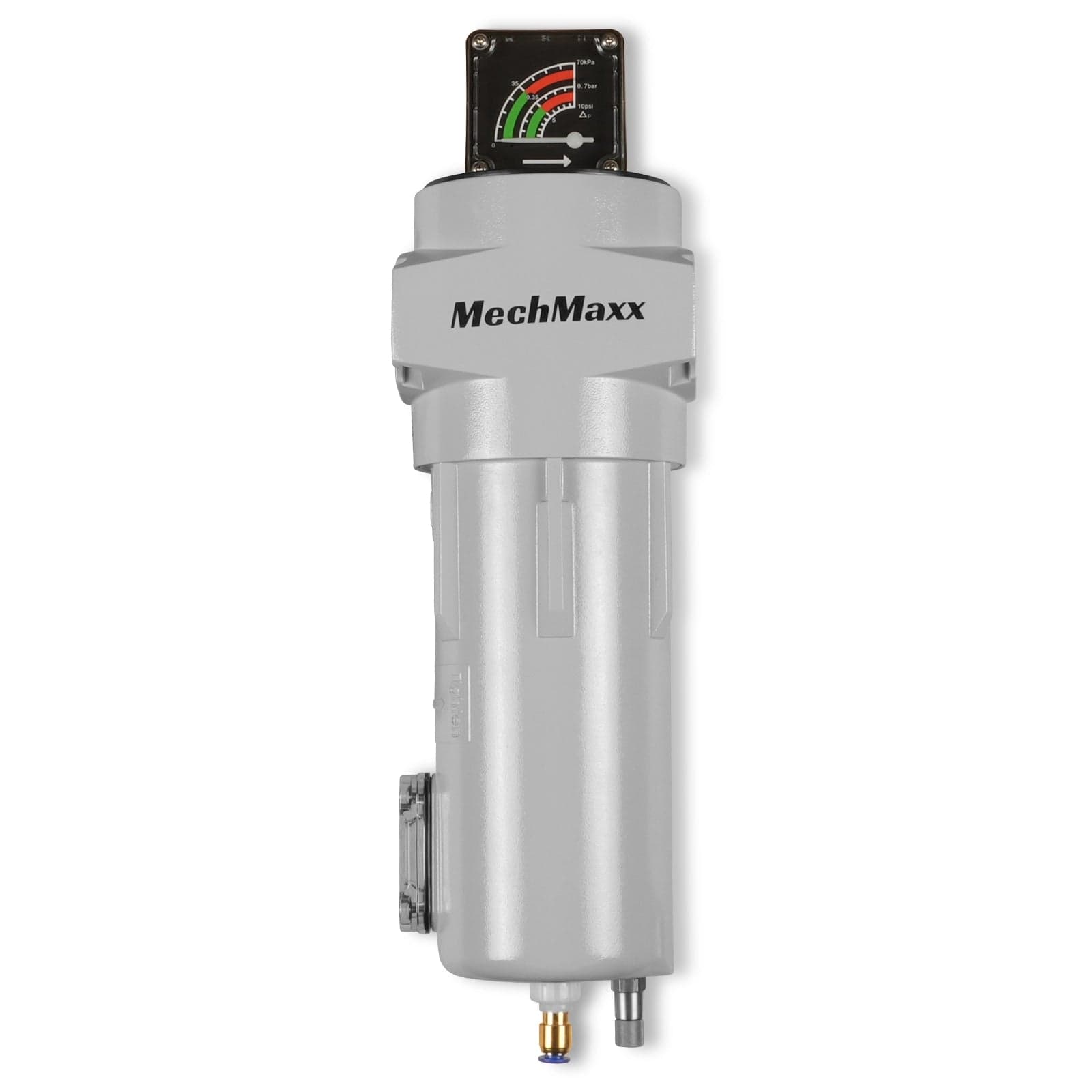

99 CFM Compressed Air Oil-Water Separator Precision Filter,0.01μm,Oil Content 0.01ppm, With Auto Drain, Pressure Gauge

99 CFM Compressed Air Oil-Water Separator Precision Filter,0.01μm,Oil Content 0.01ppm, With Auto Drain, Pressure Gauge

Compressed Air Filter

£186.19

Indicative price — contact our team to confirm and quote

  • No obligation
  • Fast response
  • Expert advice
Quantity
UK BasedExpert AdviceFree QuoteTechnical Support
Share: Email

MODEL
CAF202
Configuration
Differential Pressure Gauge;Liquid Sight Glass;Internal Automatic Drain;Manual Drain
Max Flow
98.9 CFM
Inlet/Outlet Thread
3/4″NPT
Max Op. Pressure
145PSI/1.0MPa
Max Op. Temp.
176℉/80℃
Min Op. Temp.
34.7℉/1.5℃
Filter Efficiency
0.01μm
Oil Content
0.01ppm
Maximum Burst Pressure
1,523PSI/10.5MPa
Solid Particle Filtration Efficiency
99.999+%
Oil Filtration Efficiency
99.9+%
Residual Oil Concentration
＜0.01mg/m³
Model Of Element
CAF20302F（SKU:480073）
Weight
7.1LB
Size（W*D*H）
4.7×4.3×14.8in

Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
