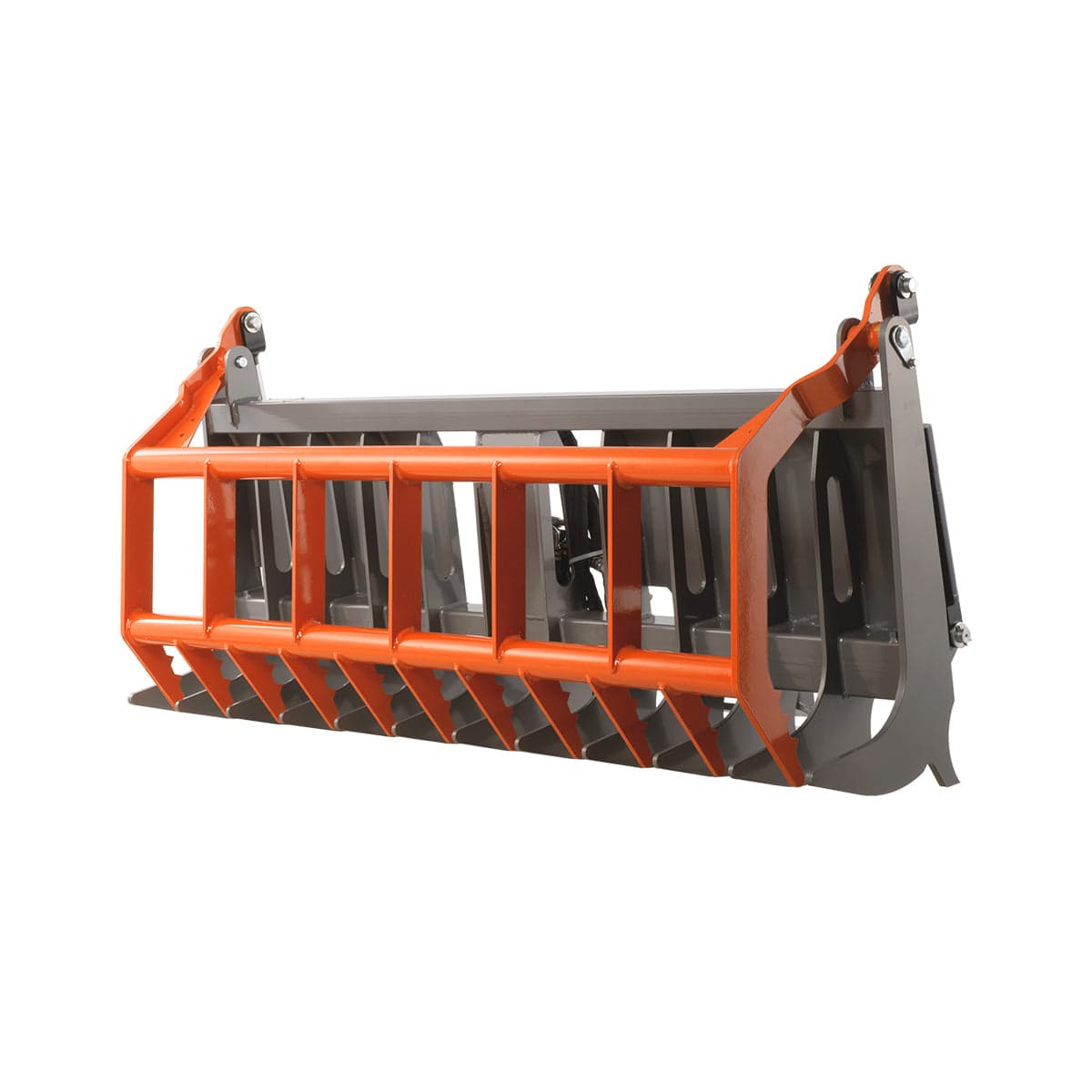

75" Hydraulic Claw Root Rake Grapple Skid Steer Attachment, GBC75
Root Grapples£1,265.39
Indicative price — contact our team to confirm and quote
- No obligation
- Fast response
- Expert advice
Working Width
75in
Jaw Opening
39.5in
No. of Teeth
12 Bottom & 11 Top
Teeth Spacing
6.4in Bottom & 6.3in Top
Teeth Thickness
0.4in
Deck Steel Thickness
0.5in
Maximum Pressure Rating
3500psi
Packing Size
76 X 35 X 25.6in
Weight (N.W/G.W.)
477/527 lbs
Warranty
1year
Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
| Jaw Opening | 39.5in(1 m) |
|---|---|
| No. of Teeth | 12 Bottom & 11 Top |
| Packing size | 76 X 35 X 25.6in(1,930 × 889 × 650 mm) |
| Teeth Spacing | 6.4in Bottom & 6.3in Top(163 mm Bottom & 160 mm Top) |
| Working Width | 75in(1.91 m) |
| Teeth Thickness | 0.4in(10.2 mm) |
| Deck Steel Thickness | 0.5in(12.7 mm) |
| Weight (net / gross) | 477/527 lbs(216 / 239 kg) |
| Maximum Pressure Rating | 3500psi(241 bar) |
Figures in brackets are metric conversions of the manufacturer’s stated imperial values, given for comparison. Where a tolerance matters, work from the original figure and confirm it with us.
Enquire about this product
Root Grapples

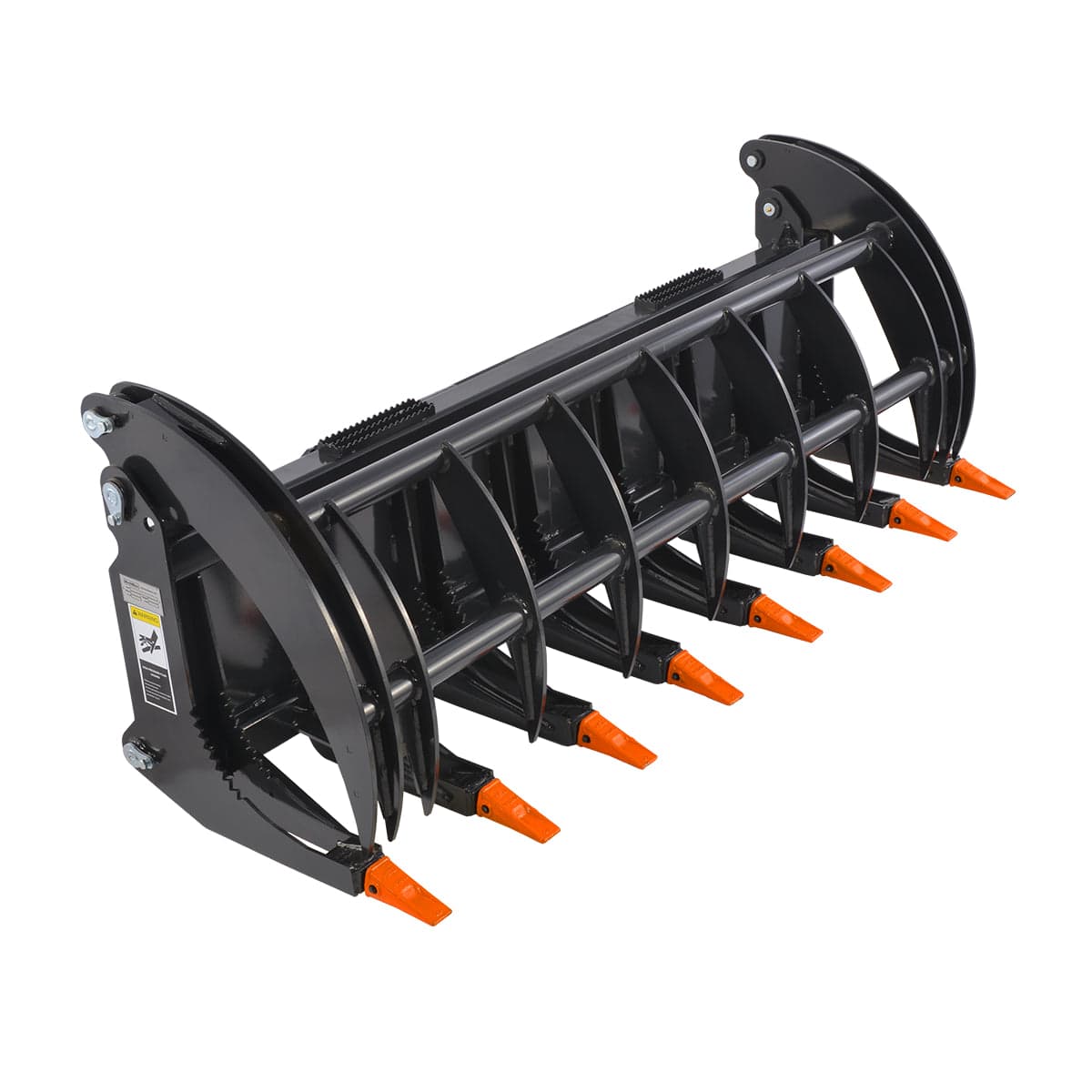

78” Skid Steer Heavy Root Rake Grapple Attachment,52in Jaw Opening , HGG-78
