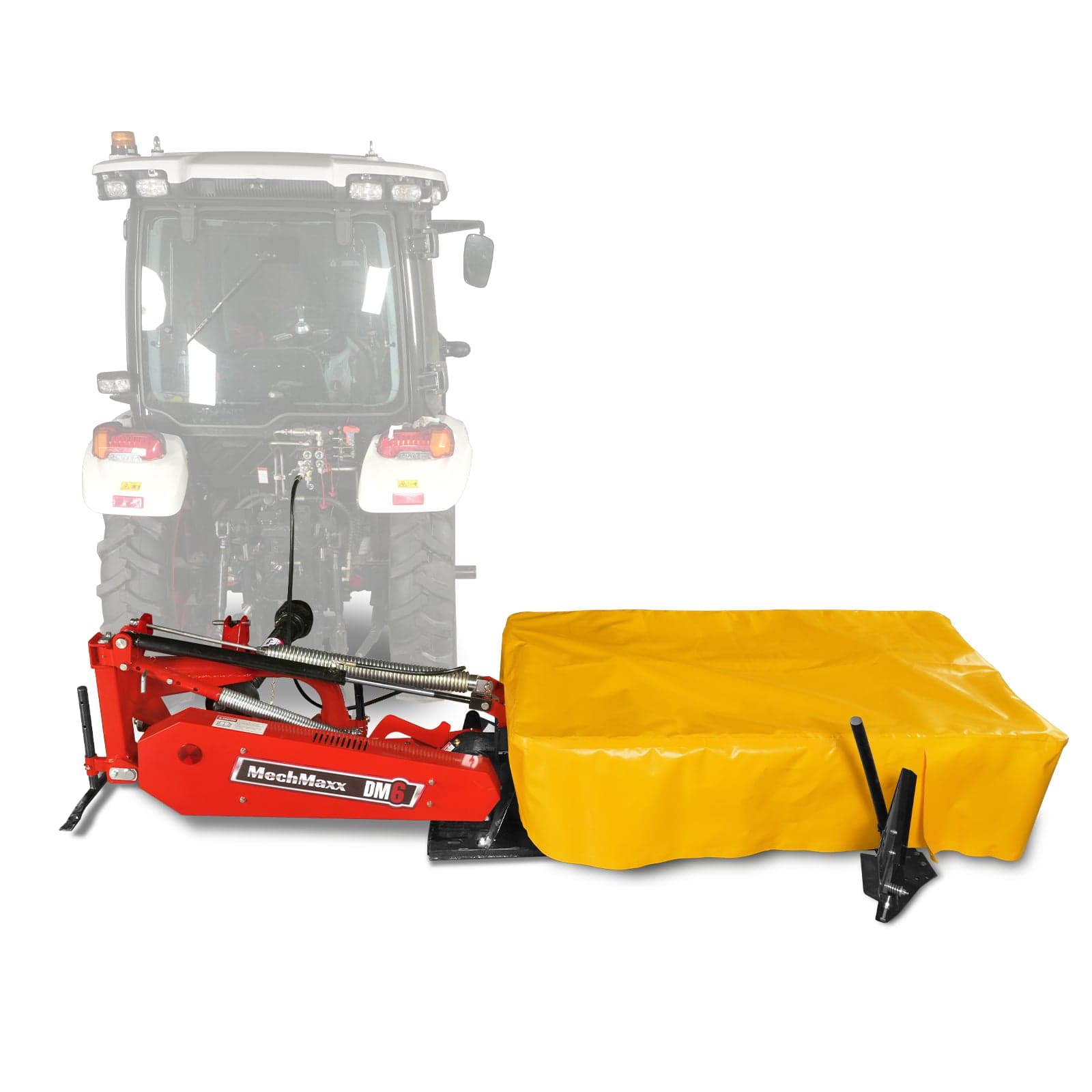

6FT 3-Point Disc Mower, 4 Disc, 35-80HP Tractor, Cat.2, DM6
Disc Mower£3,946.63
Indicative price — contact our team to confirm and quote
- No obligation
- Fast response
- Expert advice
Power Required
35-80 hp
Tilt-Down Angle
30°-40°
Working Width
5.12 ft
Min. Tractor Weight
2000 lbs
Working Speed
2.5-6.2 mi/h
Gearbox Oil Type
90SAE Oil
Stubble Height
2 in
3-Point Hitch
CAT 2
Number Of Disk
4 pcs
PTO Shaft Speed
540 rpm
Disc Length
15.4 in
Spline End
1.375in Z6
Disc Diameter（Including Blade）
19.7 in
Safety Coth Material
PVC
Side Disc Height
9.5 in
Finsh
Powder Coating
Number Of Blades
8 pcs
Product Size (L*W*H)
138 x 55 x 30 in
Blades Material
65Mn
Package Size (L*W*H)
71 x 29 x 67 in
Number Of Belts
4
Machine Warranty
1 Year
Tilt-Up Angle
80°
Weight (N.W./G.W.)
1001/1186 lbs
Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
| Finish | Powder Coating |
|---|---|
| Spline End | 1.375in Z6(34.9 mm Z6) |
| Disc Length | 15.4 in(391 mm) |
| Tilt-Up Angle | 80° |
| Working Speed | 2.5-6.2 mi/h |
| Working Width | 5.12 ft(1.56 m) |
| Number Of Disk | 4 pcs |
| Power Required | 35-80 hp(26.1 – 59.7 kW) |
| Stubble Height | 2 in(50.8 mm) |
| Blades Material | 65Mn |
| Number Of Belts | 4 |
| PTO Shaft Speed | 540 rpm |
| Tilt-Down Angle | 30°-40° |
| Gearbox Oil Type | 90SAE Oil |
| Number Of Blades | 8 pcs |
| Side Disc Height | 9.5 in(241 mm) |
| Min. Tractor Weight | 2000 lbs(907 kg) |
| Package Size (L*W*H) | 71 x 29 x 67 in(1,803 × 737 × 1,702 mm) |
| Product Size (L*W*H) | 138 x 55 x 30 in(3,505 × 1,397 × 762 mm) |
| Safety Coth Material | PVC |
| Weight (net / gross) | 1001/1186 lbs(454 / 538 kg) |
| Disc Diameter（Including Blade） | 19.7 in(500 mm) |
Figures in brackets are metric conversions of the manufacturer’s stated imperial values, given for comparison. Where a tolerance matters, work from the original figure and confirm it with us.
Enquire about this product
Disc Mower

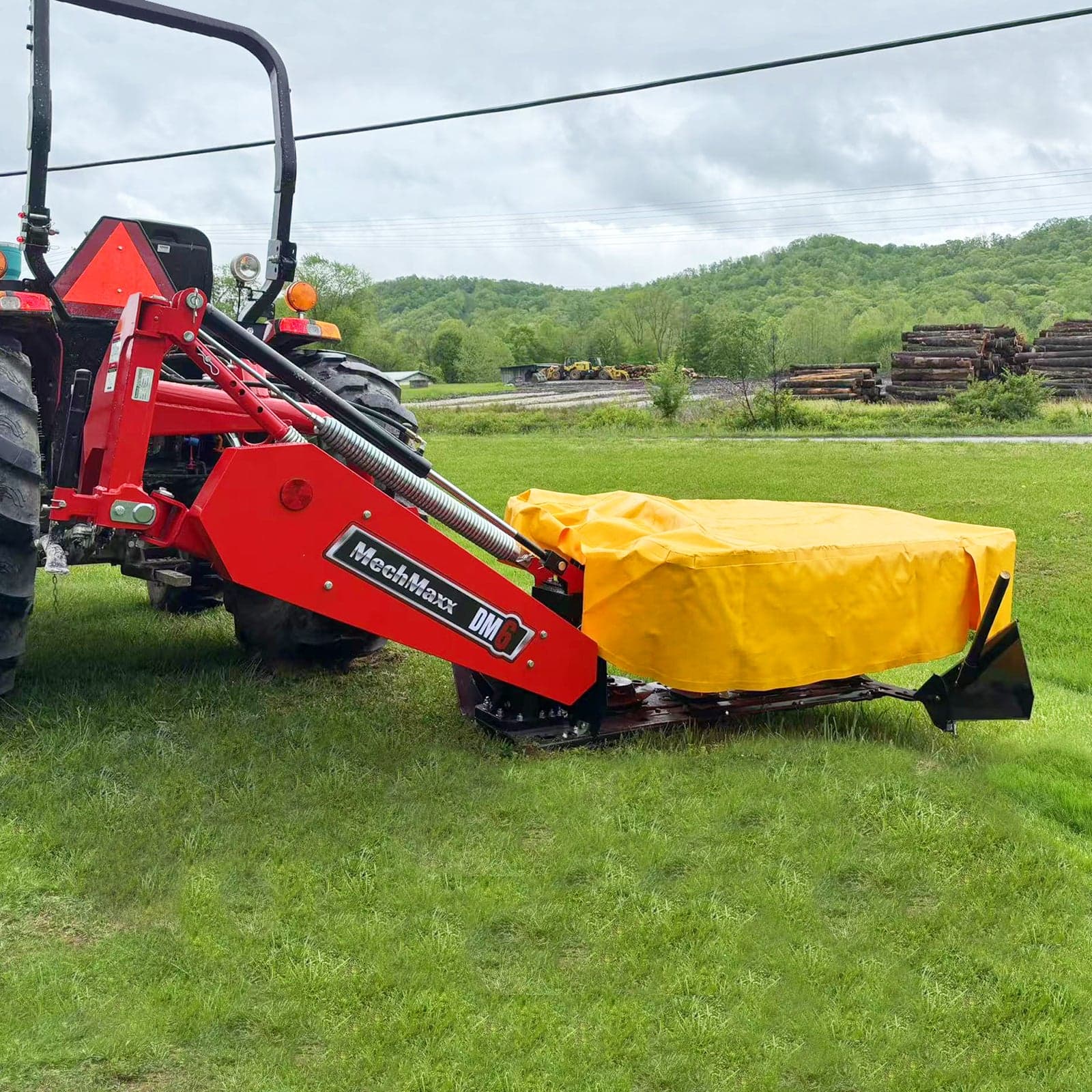

8FT 3-Point Disc Mower, 6 Disc, 50-100HP Tractor, Cat.2, DM8
£4,467.98ex VAT
Request a quote for volume pricing
