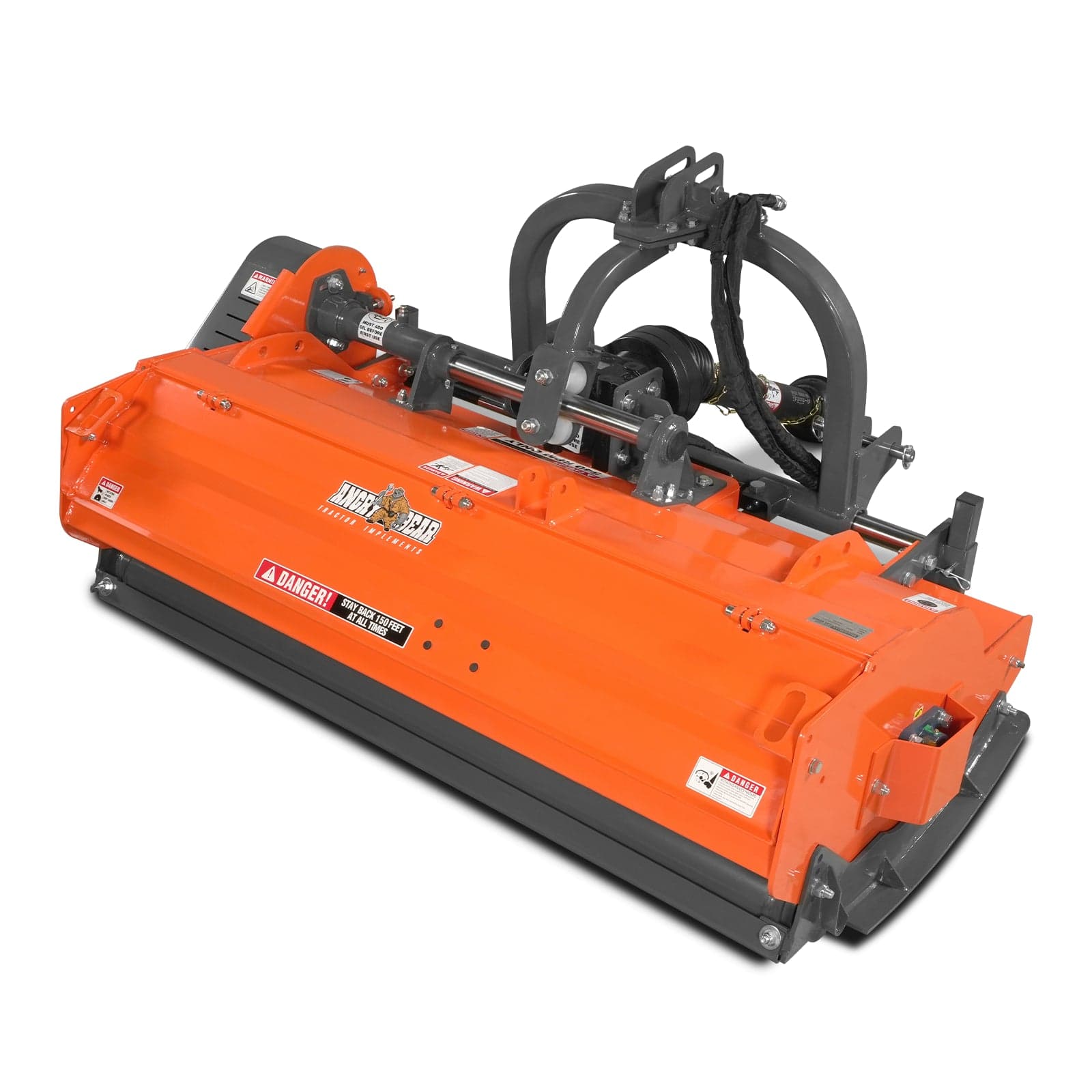

63" Heavy Duty PTO Flail Mower with Hydraulic Side Shift 3 Point 50-75 hp, KDK63H

63" Heavy Duty PTO Flail Mower with Hydraulic Side Shift 3 Point 50-75 hp, KDK63H

Heavy-duty Flail Mowers

£2,536.21

Indicative price — contact our team to confirm and quote

  • No obligation
  • Fast response
  • Expert advice
Quantity
UK BasedExpert AdviceFree QuoteTechnical Support
Share: Email

Power Required
50-75 hp
Drive Type
Gearbox with belt
Minimum Power
50 hp
Number of Belts
5
Working Width
63 in
Belt Type
AV 17*1245
Overall Width
73 in
Drive Blet Tensioner
Yes, bolts tightened
Variable Cutting Height
0-3 in
Deck Material
0.2 in
Horicontal Etending Distance
13 in
Side Plate Material
0.3 in
With Rear Open Door
1 pcs rear open door
PTO Shaft RPM
540 rpm
Blade Number
14
Driveline Shaft Length
39-50 in
Blade Type
Hammer
Spline End: PTO Shaft Spline
1.375″ z6
Blade Weight
2.7 lbs
3-Point Hitch
CAT 2
Blade Material
Cast steel
Tractor Mount
Three-point hitch
Rotor Bearing
SKF Bearing
Gearbox 0il Type
85W/90
Rotor Diameter
6 in
Dimensions (L x W x H)
73x46x37 in
Rotor Swing Diameter
16 in
Packing Size
74x38x28 in
Rotor Thickness
0.3 in
Finsh
Durable Powder Coated finish
Rotor Shaft Speed
2082 rpm
Warranty
1 year
Blade Speed
31.5 mph
Net Weight
1041 lbs
Rotor Rotation
Clockwise
Gross Weight
1168 lbs

Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
