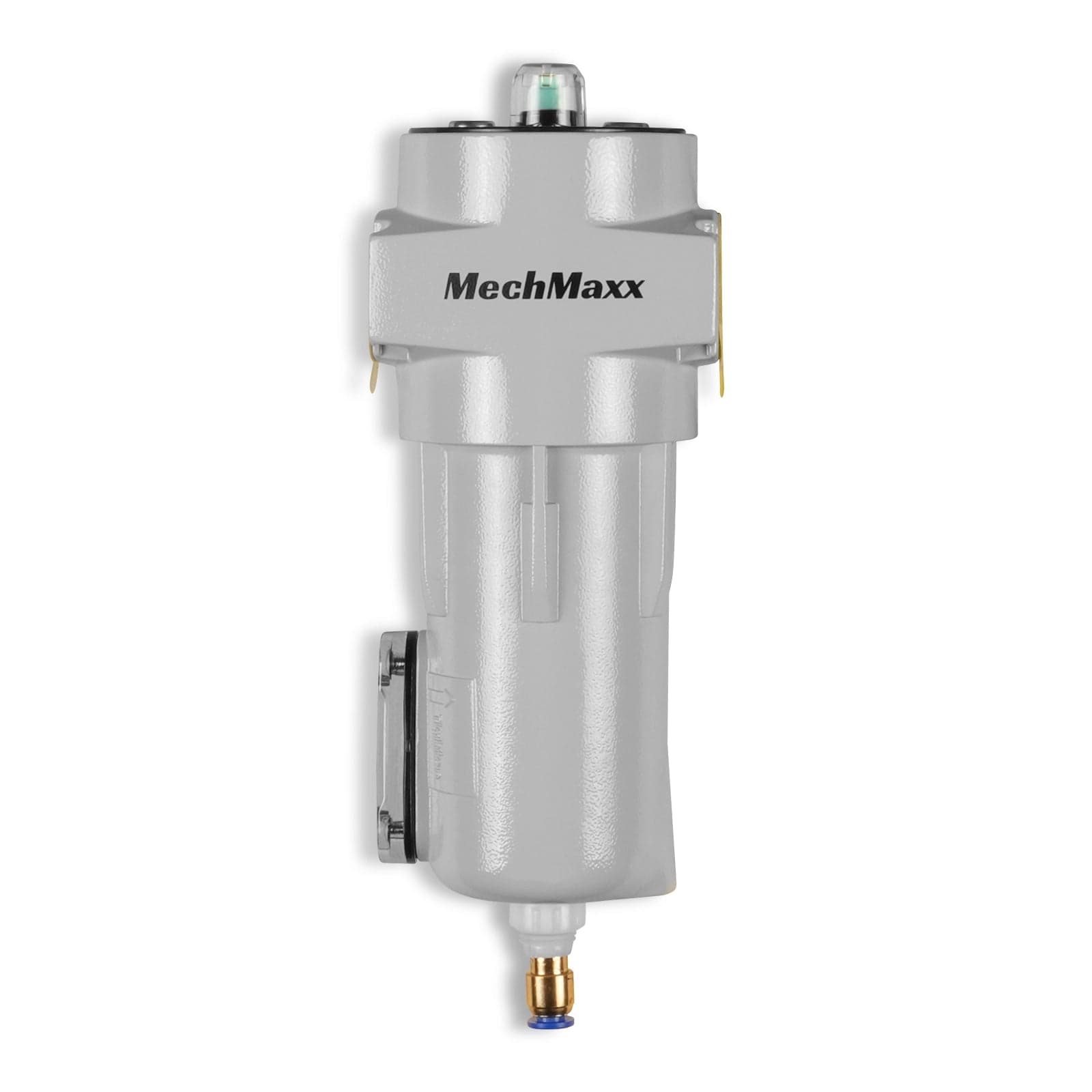

63 CFM Compressed Air Oil-Water Separator Precision Filter,1μm,Oil Content 1ppm, With Auto Drain, Pressure Indicator

63 CFM Compressed Air Oil-Water Separator Precision Filter,1μm,Oil Content 1ppm, With Auto Drain, Pressure Indicator

Compressed Air Filter

£149.17

Indicative price — contact our team to confirm and quote

  • No obligation
  • Fast response
  • Expert advice
Quantity
UK BasedExpert AdviceFree QuoteTechnical Support
Share: Email

MODEL
CAF151
Configuration
Differential Pressure Indicator;Liquid Sight Glass;Internal Automatic Drain
Max Flow
63.6 CFM
Inlet/Outlet Thread
1/2″NPT
Max Op. Pressure
145PSI/1.0MPa
Max Op. Temp.
176℉/80℃
Min Op. Temp.
34.7℉/1.5℃
Filter Efficiency
1μm
Oil Content
1ppm
Maximum Burst Pressure
1,523PSI/10.5MPa
Solid Particle Filtration Efficiency
99.999+%
Oil Filtration Efficiency
80+%
Residual Oil Concentration
0.06mg/m³
Model Of Element
CAF151F（SKU:480069）
Weight
3.1LB
Size（W*D*H）
3.5×3.1×11in

Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
