59" Multi-purpose Hydraulic Rotating Log Grapple For Mini Skid Steer, 1500lbs Lift Capacity, 360° Rotational Ability
Log Grapple£2,013.50
Indicative price — contact our team to confirm and quote
- No obligation
- Fast response
- Expert advice
Lift Capacity
1500 lbs
Grapple Opening
59 in
Hydraulic Cylinder
2 in
Rotator Power Capacity
1.5 tons
Rotational Ability
360° One Direction Rotation
Flow Range Low
8 gal/min
Flow Range High
12 gal/min
Hydraulic Pressure
2900 psi
Maximum Static Axial Load
30 kN
Package Method
Iron Fram with film
Finish
Durable Powder Coated finish
Warranty
1year
Packing Size
43x35x35 in
Weight (N.W./G.W.)
266/456 lbs
Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
| Finish | Durable Powder Coated finish |
|---|---|
| Packing size | 43x35x35 in(1,092 × 889 × 889 mm) |
| Lift Capacity | 1500 lbs(680 kg) |
| Flow Range Low | 8 gal/min(30.3 L/min) |
| Package Method | Iron Fram with film |
| Flow Range High | 12 gal/min(45.4 L/min) |
| Grapple Opening | 59 in(1.5 m) |
| Hydraulic Cylinder | 2 in(50.8 mm) |
| Hydraulic Pressure | 2900 psi(200 bar) |
| Rotational Ability | 360° One Direction Rotation |
| Weight (net / gross) | 266/456 lbs(121 / 207 kg) |
| Rotator Power Capacity | 1.5 tons |
| Maximum Static Axial Load | 30 kN |
Figures in brackets are metric conversions of the manufacturer’s stated imperial values, given for comparison. Where a tolerance matters, work from the original figure and confirm it with us.
Enquire about this product
Log Grapple

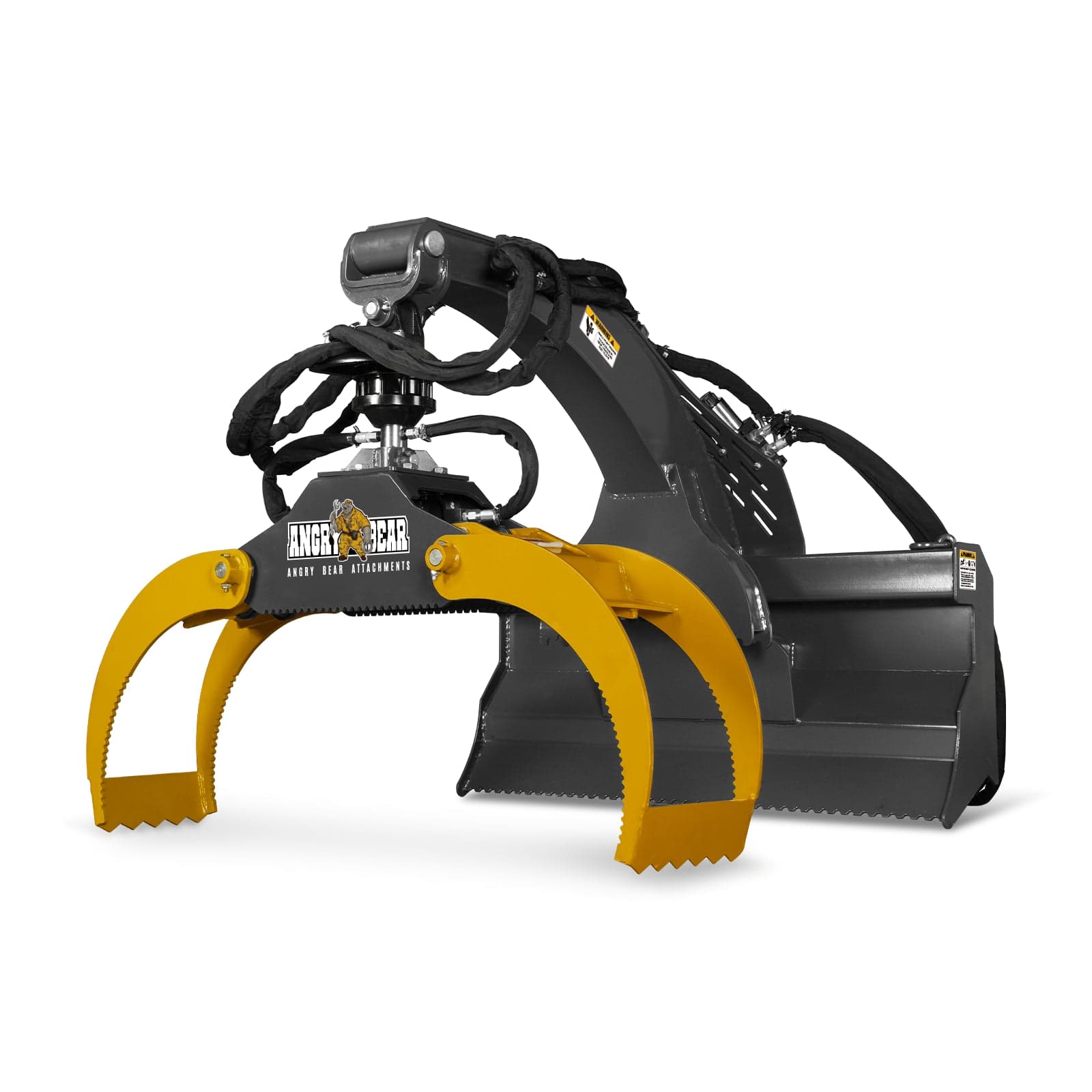

50" Skid Steer Rotary Log Grapple, 360° Rotation, 3000 Lbs Capacity
