MACHINERY GROUP LTD

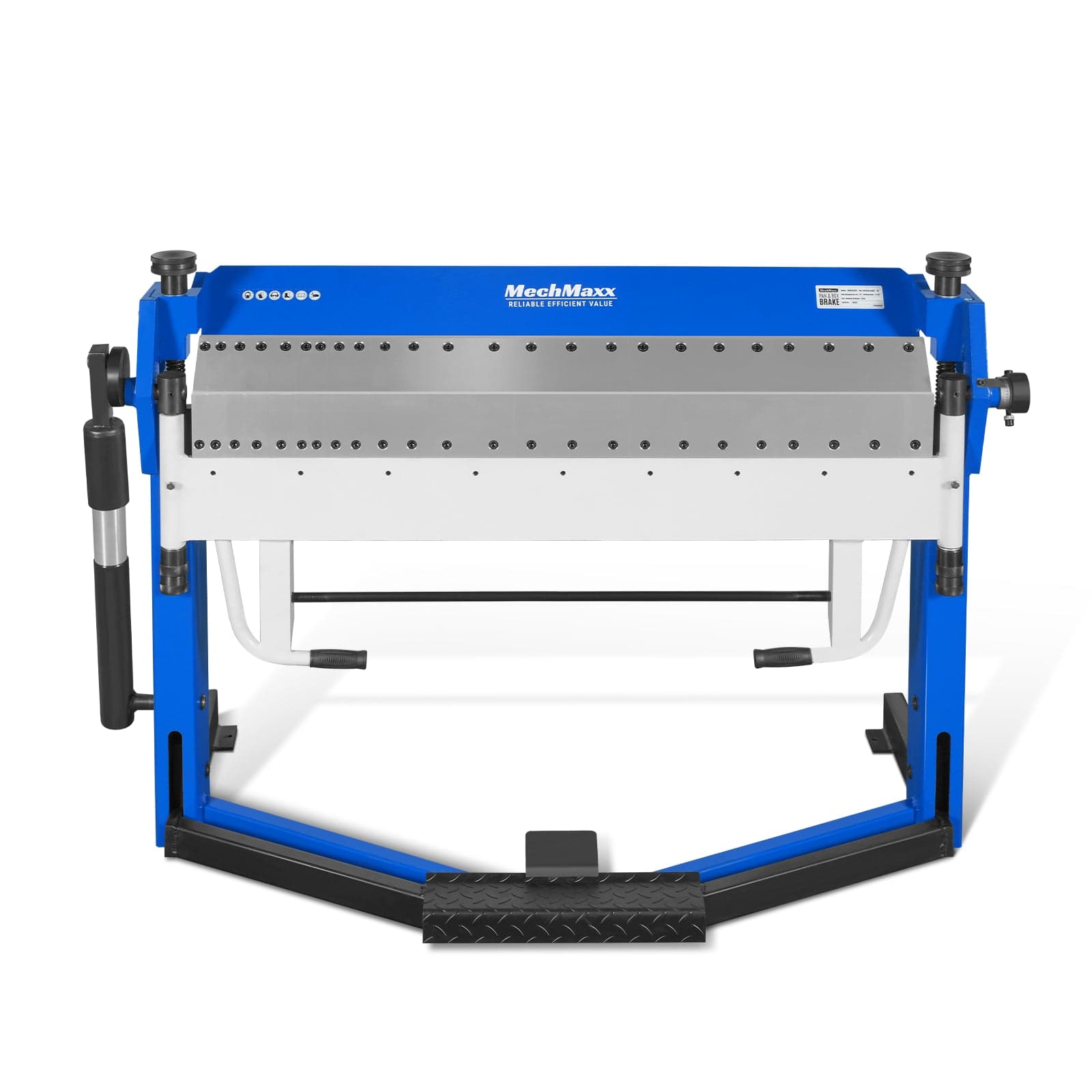

50-Inch Foot Clamp Pan and Box Brake, Industrial Heavy Duty Sheet Metal Folding Machine, 0–135° Bending Angle, 1.9" Clamping Lift, 2" Box Depth

50-Inch Foot Clamp Pan and Box Brake, Industrial Heavy Duty Sheet Metal Folding Machine, 0–135° Bending Angle, 1.9" Clamping Lift, 2" Box Depth

Foot Clamp Brake

£2,233.62

Indicative price — contact our team to confirm and quote

  • No obligation
  • Fast response
  • Expert advice
Quantity
UK BasedExpert AdviceFree QuoteTechnical Support
Share: Email

Maximum Working Length
50 in
Maximum Sheet Thickness
14 Ga. mild steel
Maximum Clamping Bar Lift
1.9 in
Folding Angle Range
0° – 135°
Top Beam Tools
Segmented, ceramic-coated fingers (anti-rust & hardened edges)
Bending Beam Control
Bow handle with cam lock and rebound spring
Counterbalance System
Compression spring + optional air spring assist
Angle Stop
Adjustable with scale, up to 135°
Control
Foot pedal clamp for hands-free operation
Frame Construction
Heavy truss rods & welded steel plate body for extra durability
Applications
Industrial workshops, fabrication shops, production environments
Packing Size
66.9 × 28 × 50 in
Net / Gross Weight
849 / 901 lbs

Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
