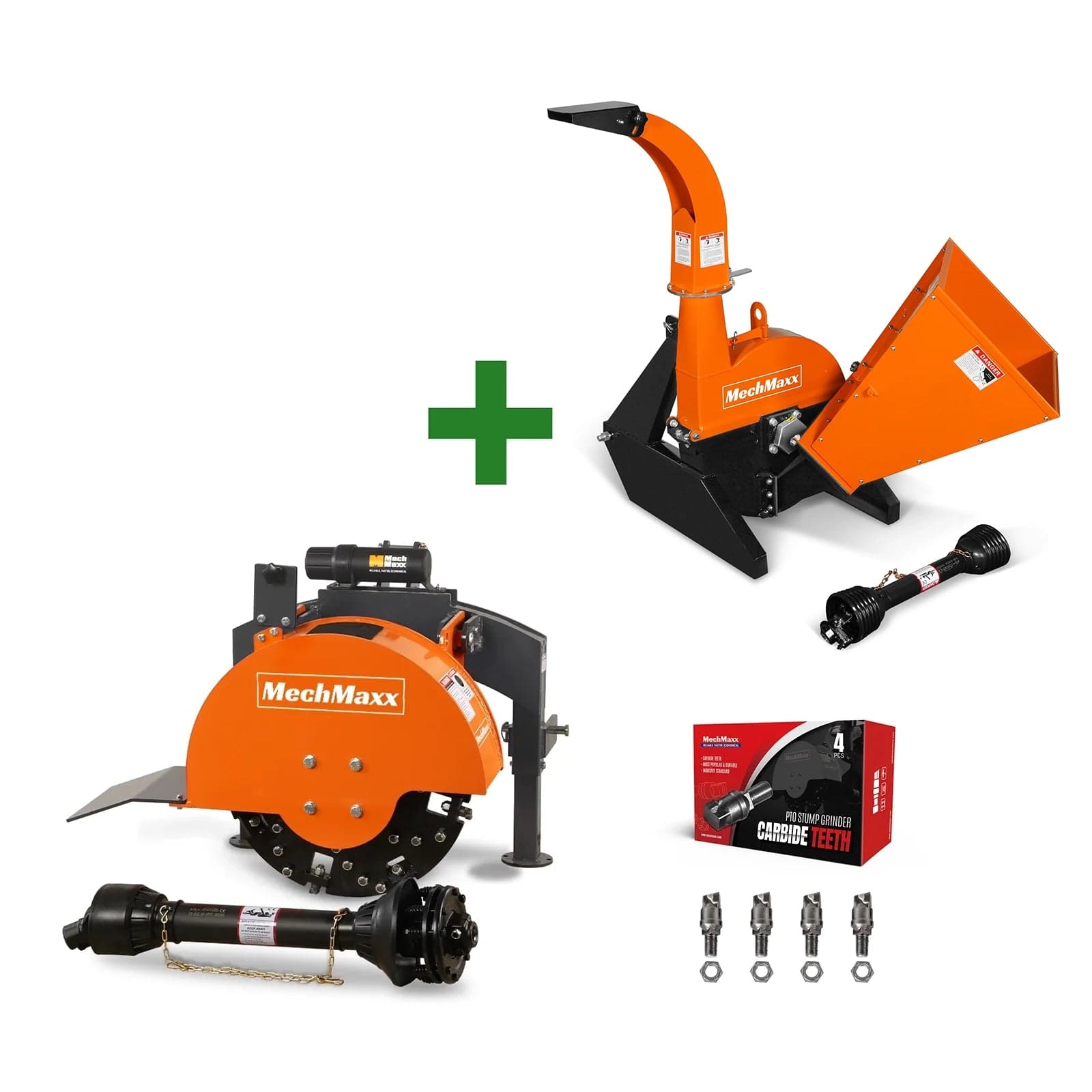

3-Point PTO Stump Grinder & Wood Chipper Combo
Standard Stump Grinders£2,237.00
Indicative price — contact our team to confirm and quote
- No obligation
- Fast response
- Expert advice
PTO Stump Grinder
Flywheel Diameter
24 in
Mounting
3 point hitch Cat. 1 (Quick attach compatible)
Flywheel Thickness
3/4 in
PTO Input
540 RPM
Carbid Tip
34 pcs
Max. Torque
1200Nm
Carbid Tip Material
YG11C
PTO Shaft Weight
44 lbs
Tip Holder Material
42CrMo
Dimensions
29 x 37x 38 in
PTO HP Required
15–45 HP
Packing
Iron frame + Carton
PTO Shaft (Included Shipping)
1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch
Weight (N.W/G.W.)
450/563 lbs
Friction Torque Limiter (Slip Clutch)
Included
PTO Wood Chipper
Tractor Power
18-45HP
Blade (Tines) Material
4CrW2Si
Max. Throughput Capacity
4 in
PTO Shaft RPM
540 RPM
Infeed Opening
4*10 in
Flywheel Speed
540 RPM
lnfeed Chute Opening
20*20 in
Drive Type
PTO
Feeding Opening
Gravity Feed
Driveline Shaft Length
T5-LF-31 in with shear bolt, 31.5-43 in
Discharge Chute Rotation
360 Degrees
3-Point Hitch
CAT 1
Rotor Diameter
25 in
Dimensions (L x Wx H)
38x 33x 43 in
Rotor Thickness
0.5 in
Finsh
Powder Coat Paint Galvanized Steel
Rotor Weight
82 lbs
Warranty
1 year
Number Of Blades
4+1
Net Weight
397 lbs
Blade Weight
0.9 lbs
Gross Weight
441 lbs
Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
| Finish | Powder Coat Paint Galvanized Steel |
|---|---|
| Packing | Iron frame + Carton |
| Mounting | 3 point hitch Cat. 1 (Quick attach compatible) |
| PTO Input | 540 RPM |
| Carbid Tip | 34 pcs |
| Dimensions | 29 x 37x 38 in(737 × 940 × 965 mm) |
| Drive Type | PTO |
| Net Weight | 397 lbs(180 kg) |
| Max. Torque | 1200Nm |
| Blade Weight | 0.9 lbs(0.408 kg) |
| Gross Weight | 441 lbs(200 kg) |
| Rotor Weight | 82 lbs(37.2 kg) |
| PTO Shaft RPM | 540 RPM |
| Tractor Power | 18-45HP(13.4 – 33.6 kW) |
| Flywheel Speed | 540 RPM |
| Infeed Opening | 4*10 in(102 × 254 mm) |
| Rotor Diameter | 25 in(635 mm) |
| Feeding Opening | Gravity Feed |
| PTO HP Required | 15–45 HP(11.2 – 33.6 kW) |
| Rotor Thickness | 0.5 in(12.7 mm) |
| Number Of Blades | 4+1 |
| PTO Shaft Weight | 44 lbs(20 kg) |
| Flywheel Diameter | 24 in(610 mm) |
| Flywheel Thickness | 3/4 in |
| Carbid Tip Material | YG11C |
| Tip Holder Material | 42CrMo |
| Dimensions (L×W×H) | 38x 33x 43 in(965 × 838 × 1,092 mm) |
| Infeed chute opening | 20*20 in(508 × 508 mm) |
| Weight (net / gross) | 450/563 lbs(204 / 255 kg) |
| Blade (Tines) Material | 4CrW2Si |
| Driveline Shaft Length | T5-LF-31 in with shear bolt, 31.5-43 in |
| Discharge Chute Rotation | 360 Degrees |
| Max. Throughput Capacity | 4 in(102 mm) |
| PTO Shaft (Included Shipping) | 1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch |
| Friction Torque Limiter (Slip Clutch) | Included |
Figures in brackets are metric conversions of the manufacturer’s stated imperial values, given for comparison. Where a tolerance matters, work from the original figure and confirm it with us.
Enquire about this product
Standard Stump Grinders

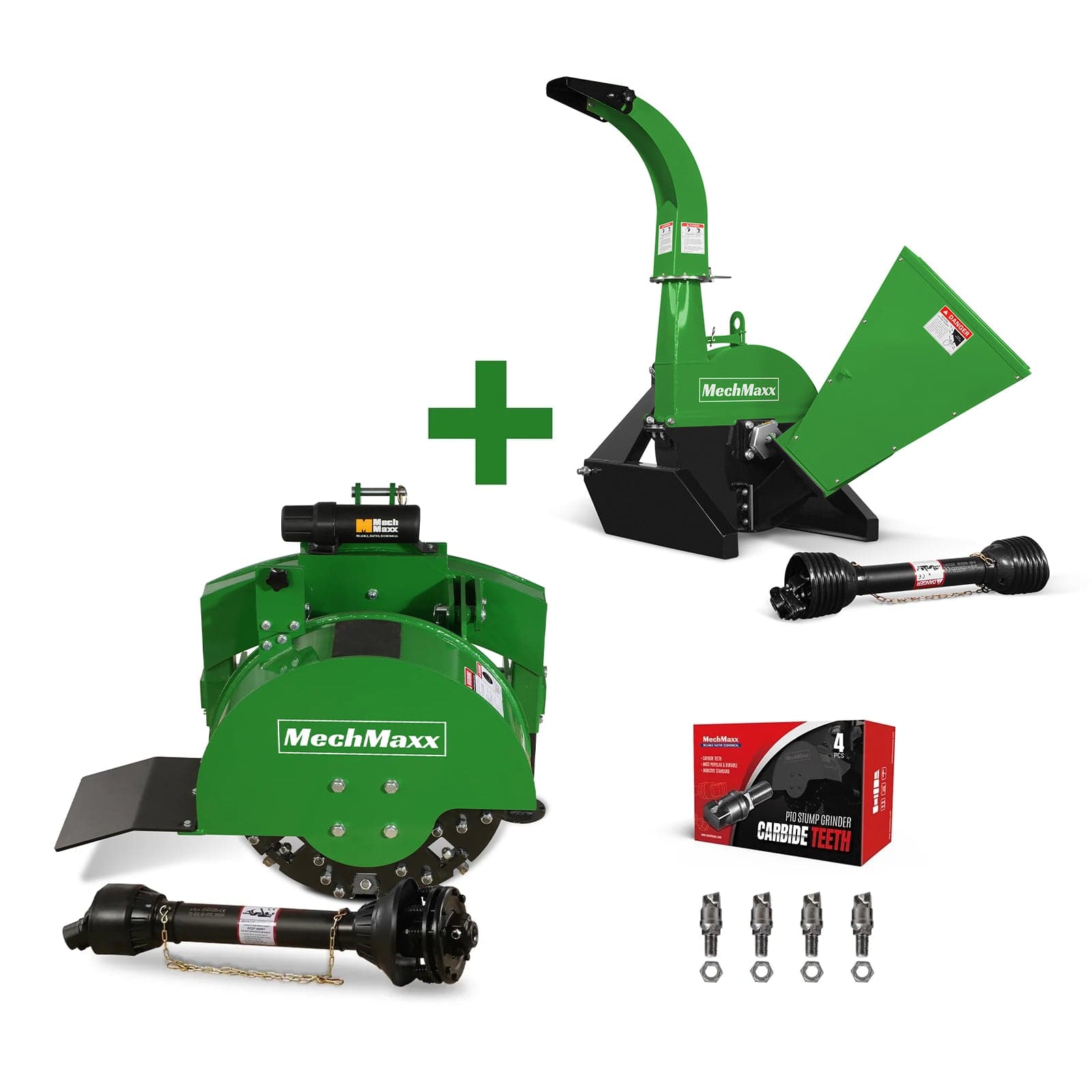

3-Point PTO Stump Grinder & Wood Chipper Combo
£2,234.04ex VAT
Request a quote for volume pricing
Standard Stump Grinders

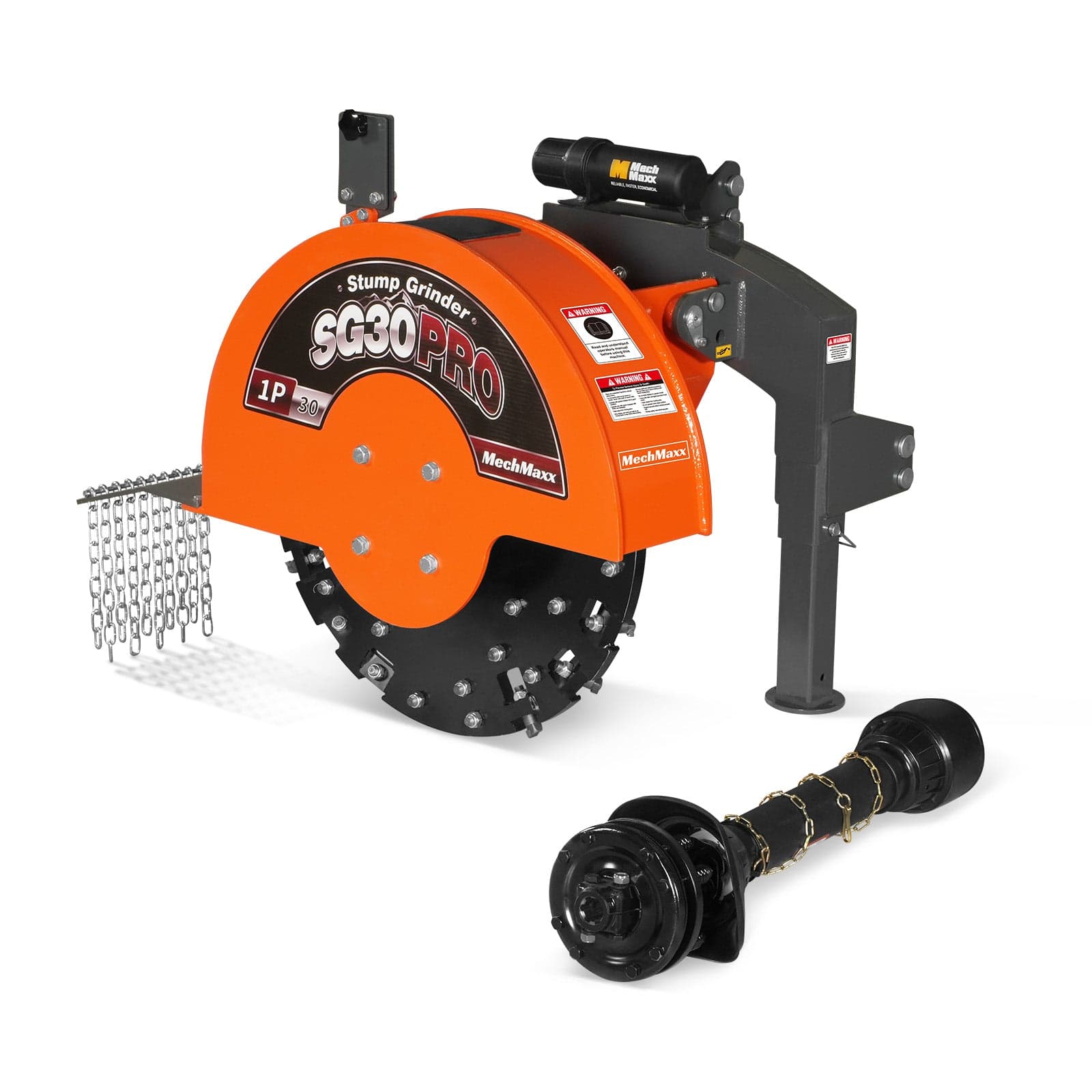

3-Point PTO Stump Grinder, 30 in Flywheel, 40-100HP, with 44 Carbide Teeth (PTO Shaft Included with Slip Clutch), SG30PRO
£2,086.11ex VAT
Request a quote for volume pricing
Standard Stump Grinders

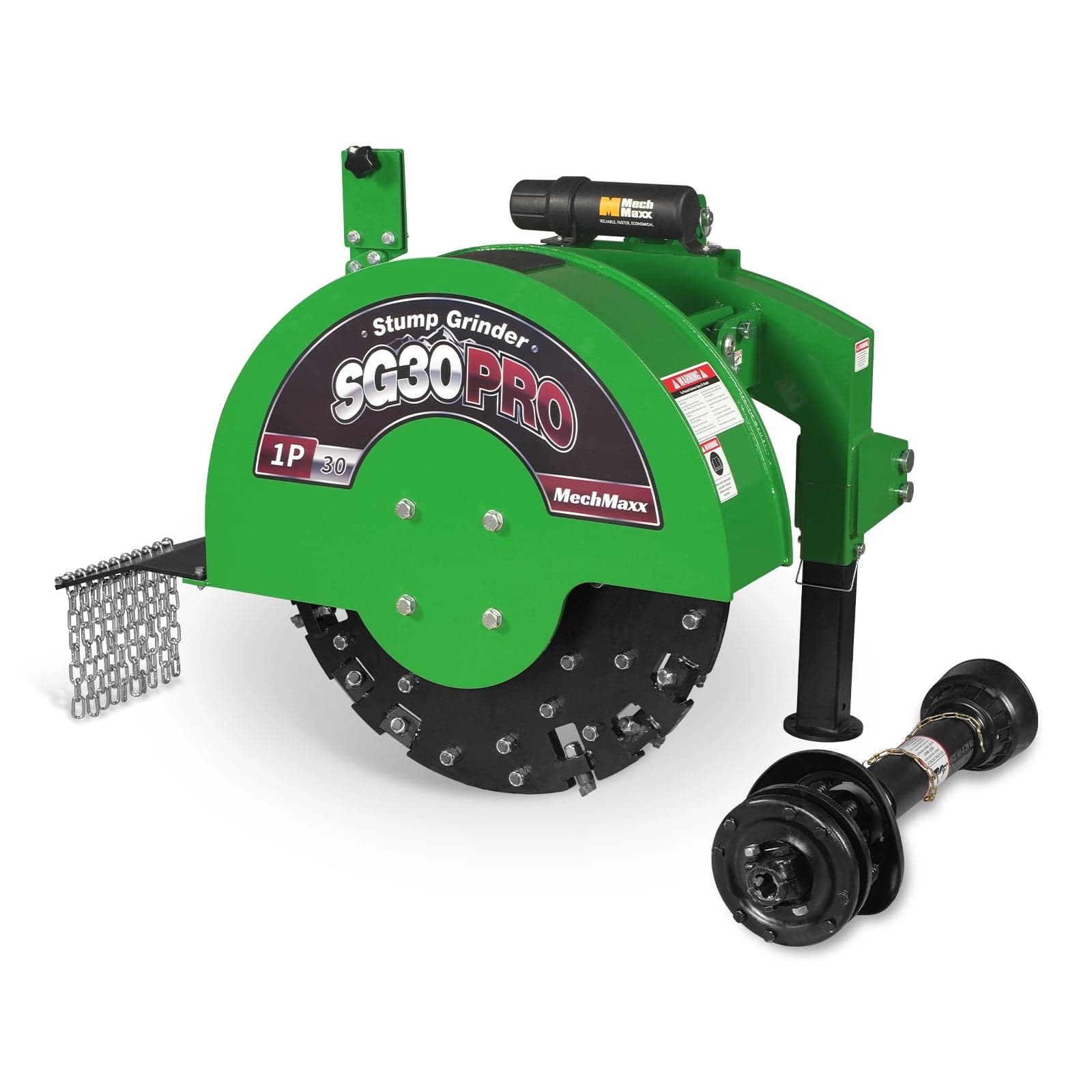

3-Point PTO Stump Grinder, 30 in Flywheel, 40-100HP, with 44 Carbide Teeth (PTO Shaft Included with Slip Clutch), SG30PRO
£2,073.59ex VAT
Request a quote for volume pricing
Standard Stump Grinders

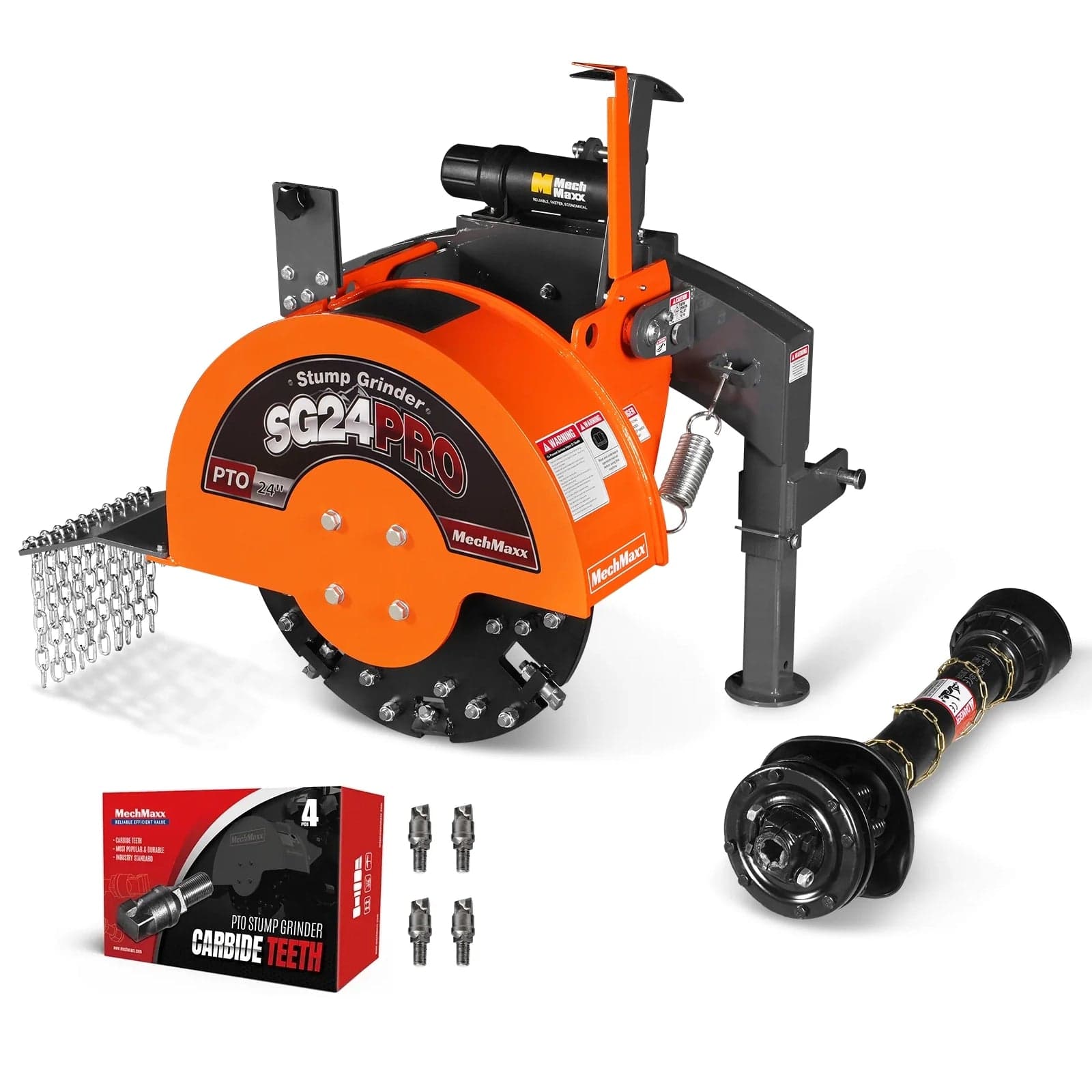

3-Point PTO Stump Grinder with 34 Carbide Teeth (PTO Shaft Included with Slip Clutch), for 15-45HP Tractor, SG24PRO
