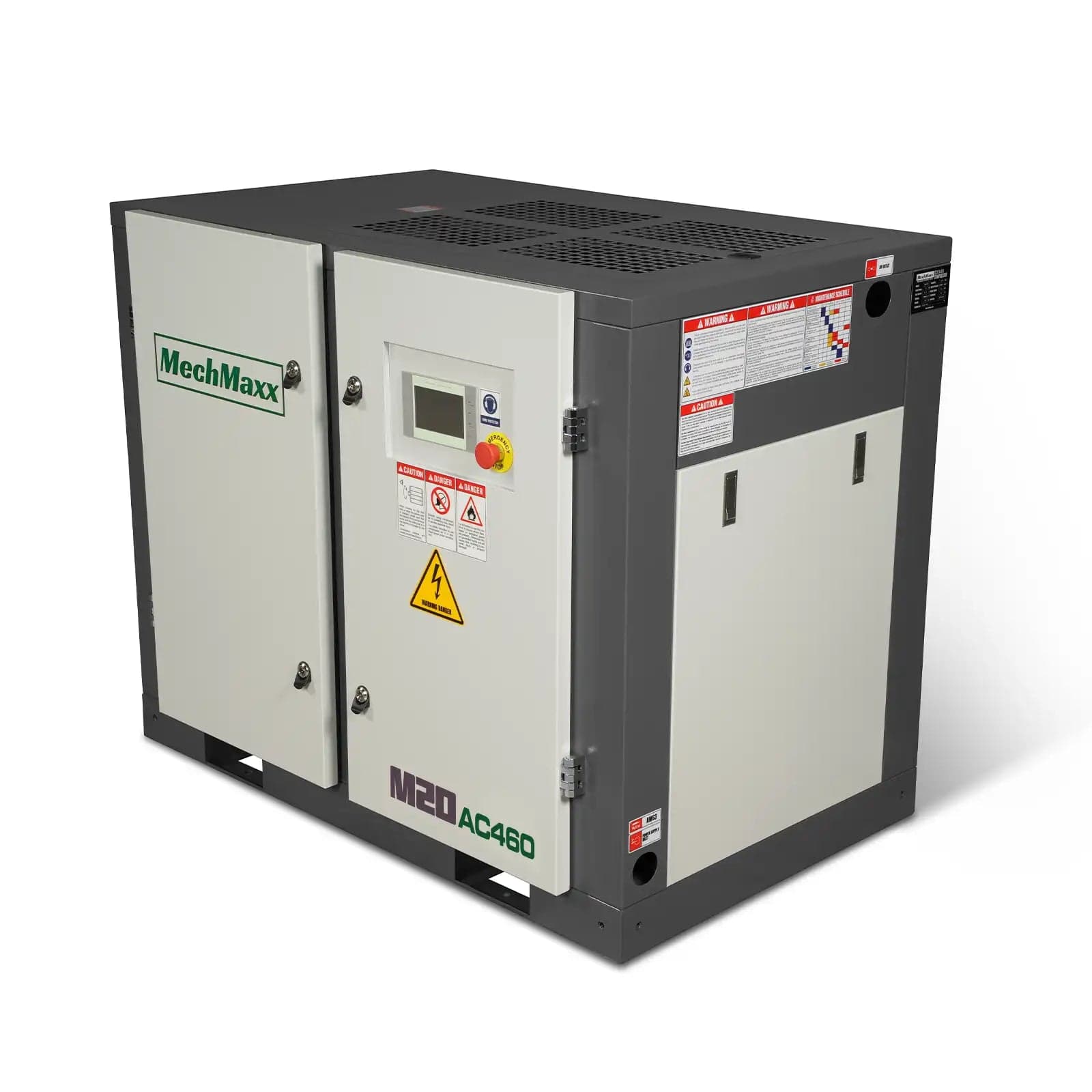

20HP Rotary Screw Air Compressor – 78 CFM, 116 PSI, 460V 3-Phase | Industrial-Grade

20HP Rotary Screw Air Compressor – 78 CFM, 116 PSI, 460V 3-Phase | Industrial-Grade

78CFM Rotary Screw Air Compressor

£3,108.34

Indicative price — contact our team to confirm and quote

  • No obligation
  • Fast response
  • Expert advice

Not compatible with UK three-phase supply as configured

This unit is specified at a North American three-phase voltage (460/480 V). UK three phase is 400 V, so it cannot be connected to a UK three-phase supply as supplied and would require a transformer. Talk to us about your installation before ordering.

Supplied to trade buyers only. Because this item is not UK supply specification, we supply it to businesses specifying it for a known application rather than to consumers. Tell us the installation and we will confirm what you need before you order.

Quantity
UK BasedExpert AdviceFree QuoteTechnical Support
Share: Email

Voltage
460V 3PH 60HZ（L1+L2+L3,G）
Air Flow Capacity
78CFM
Wire Gauge
AWG7
Air Outlet Thread
3/4“NPT
Oil Tank Capacity
2.64Gal (10L)
Maximum Current
27.6A
Rated Power
20HP
Starting Method
Star-Delta (Wye-Delta) Start
Rated Pressure
116 PSI (0.8 MPa)
Noise Level
70dba
Motor Speed
3515RPM
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Recommended Oil Grade
S3R46
Oil Sight Glass
Yes
Pump Drive
Belt Drive
Standard Adaptor
3/4″ NPT
Machine Size:
49.2″ x 31.5″ x 39.5″
Packing Size:
50″ x 33.46″ x 45.3″
N.W.:/ G.W.:
631 lbs/726 lbs

Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
