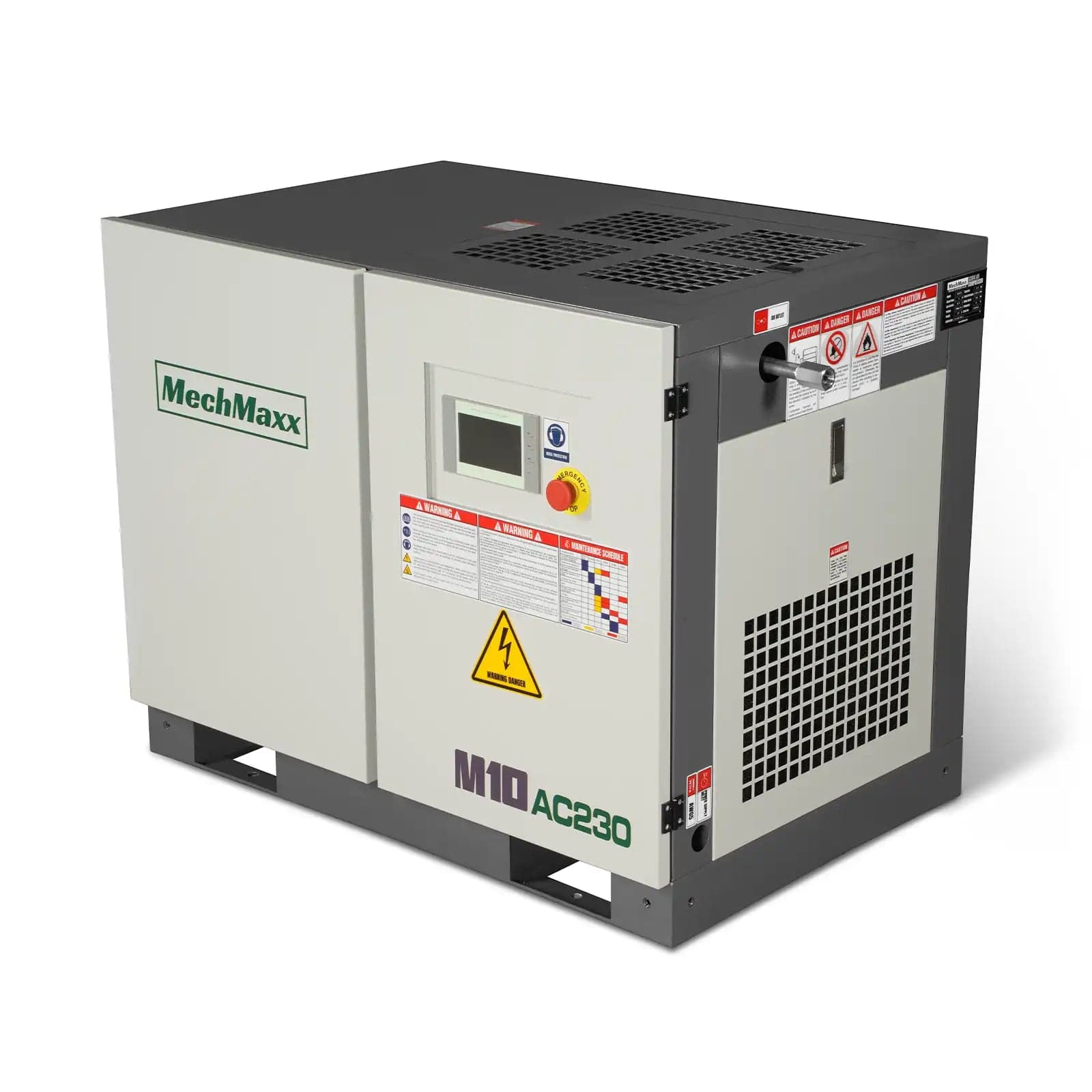

10HP Rotary Screw Air Compressor – 32 CFM, 116 PSI, 230V 3-Phase | Industrial-Grade

10HP Rotary Screw Air Compressor – 32 CFM, 116 PSI, 230V 3-Phase | Industrial-Grade

32CFM Rotary Screw Air Compressor

£2,088.51

Indicative price — contact our team to confirm and quote

  • No obligation
  • Fast response
  • Expert advice

60 Hz equipment — UK mains is 50 Hz

This unit is configured for 60 Hz operation; UK mains runs at 50 Hz. Heating elements and other resistive loads are largely indifferent to frequency, but motors run around 20% slower on 50 Hz and timer or control circuits can be affected. Tell us the application and we will confirm suitability before you order.

Supplied to trade buyers only. Because this item is not UK supply specification, we supply it to businesses specifying it for a known application rather than to consumers. Tell us the installation and we will confirm what you need before you order.

Quantity
UK BasedExpert AdviceFree QuoteTechnical Support
Share: Email

Model
M10AC230
Voltage
230V 3PH 60HZ（L1+L2+L3,G）
Air Flow Capacity
32.8CFM
Wire Gauge
AWG7
Air Outlet Thread
1/2″NPT
Oil Tank Capacity
1.05Gal (4L)
Maximum Current
28.5A
Rated Power
10HP
Rated Pressure
116 PSI (0.8 MPa)
Noise Level
65dba
Motor Speed
3500RPM
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Recommended Oil Grade
S3R46
Oil Sight Glass
Yes
Pump Drive
Belt Drive
Standard Adaptor
1/2″NPT
Machine Size:
39.3″ x 28.3″ x 31.5″
Packing Size:
41.3″ x 29.5″ x 37.4″
N.W.:/ G.W.:
419 lbs/473 lbs

Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
