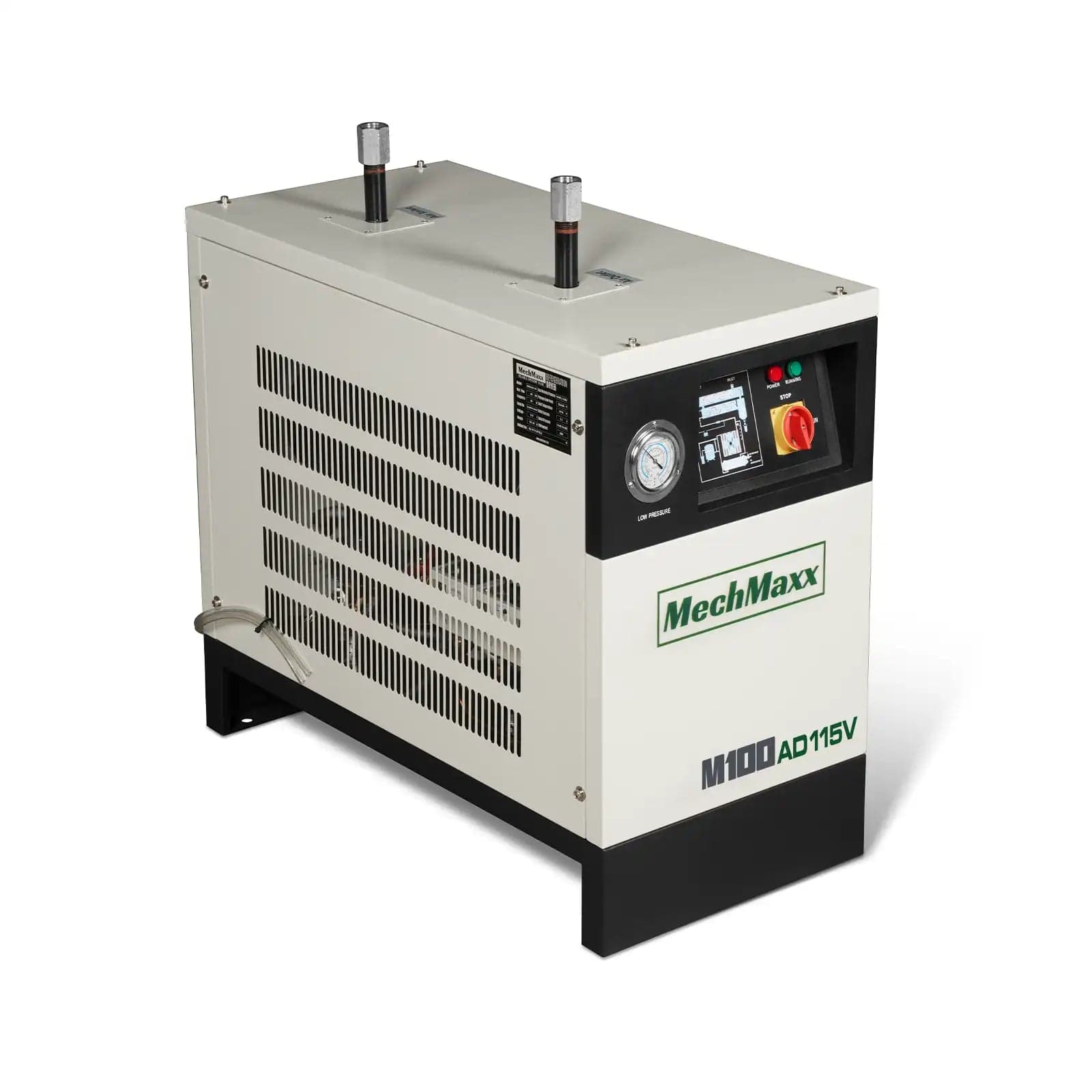

100CFM Refrigerated Air Dryer 1Phase 115V For Air Compressor

100CFM Refrigerated Air Dryer 1Phase 115V For Air Compressor

100CFM Air Dryer

£1,191.74

Indicative price — contact our team to confirm and quote

  • No obligation
  • Fast response
  • Expert advice

60 Hz equipment — UK mains is 50 Hz

This unit is configured for 60 Hz operation; UK mains runs at 50 Hz. Heating elements and other resistive loads are largely indifferent to frequency, but motors run around 20% slower on 50 Hz and timer or control circuits can be affected. Tell us the application and we will confirm suitability before you order.

Supplied to trade buyers only. Because this item is not UK supply specification, we supply it to businesses specifying it for a known application rather than to consumers. Tell us the installation and we will confirm what you need before you order.

Quantity
UK BasedExpert AdviceFree QuoteTechnical Support
Share: Email

Voltage
115V 1PH 60HZ
Max Flow
100CFM
Rated Pressure
116 PSI / 0.8MPa
Max Working Pressure
145 PSI / 1.0MPa
Compressor Brand
Panasonic
Compressor Power
0.75KW
Max Inlet Temperature
≤176℉
Pressure Dew Point
35.6℉ ~ 50℉
Refrigerant
R410a
Air Inlet Thread
1″NPT
Air Outlet Thread
1″NPT
Machine Size:
15.7 x 31.5 x 30.7″
Packing Size:
18.9 x 32.7 x 33.5″
N.W.:/ G.W.:
143LBS / 220LBS

Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
