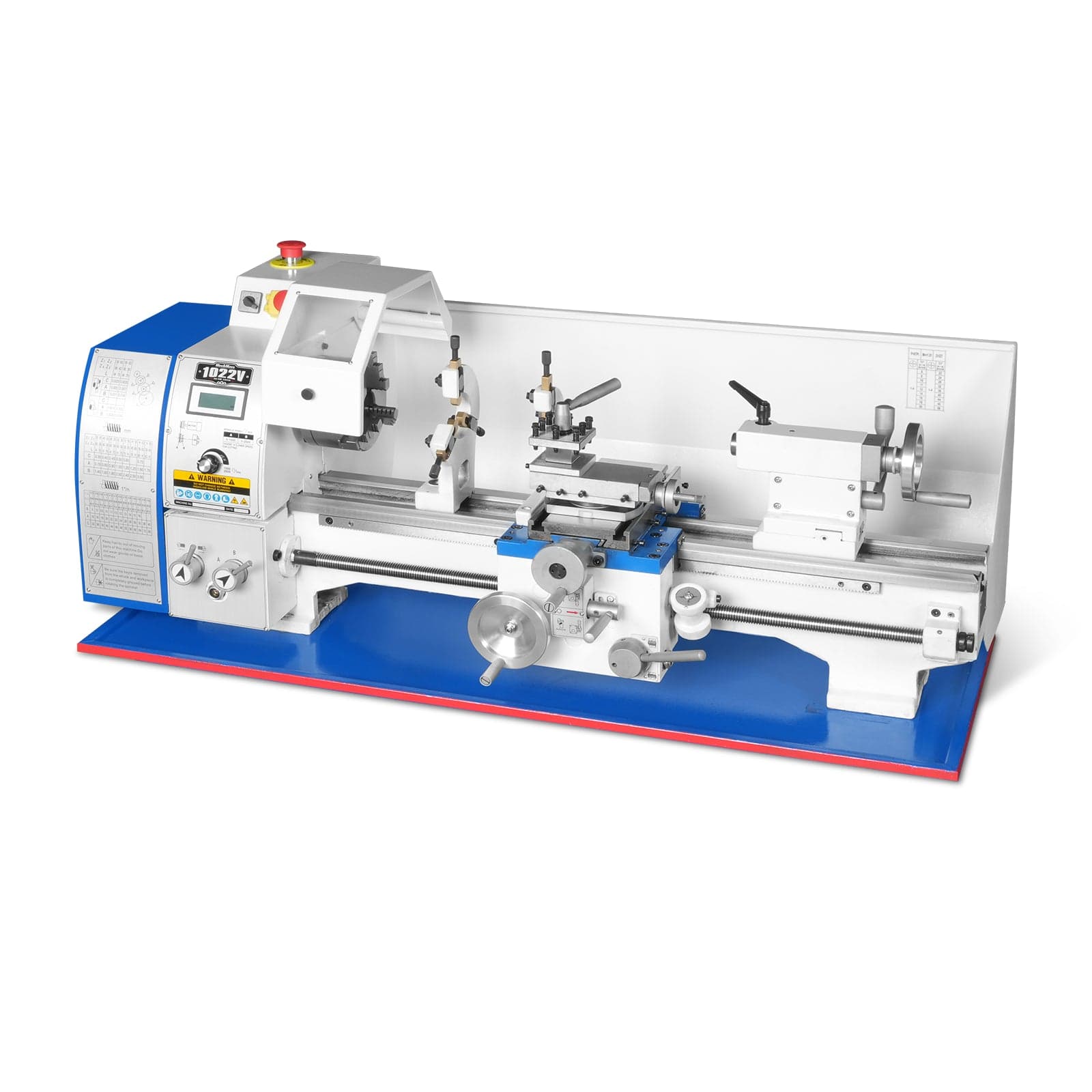

10'' x 22'' Industrial Metal Lathe Machine High Precision Benchtop 1.5HP Brushless Motor 0-2000 RPM Variable Speed Metal Working Machine Small...

10'' x 22'' Industrial Metal Lathe Machine High Precision Benchtop 1.5HP Brushless Motor 0-2000 RPM Variable Speed Metal Working Machine Small...

8''-11''Swing Lathes

£1,935.70

Indicative price — contact our team to confirm and quote

  • No obligation
  • Fast response
  • Expert advice

110 V equipment — check your supply

This unit is specified at 110 V, against UK mains of 230 V. 110 V is common on UK sites as a centre-tapped transformer supply, so this may well suit site use — but UK site supply runs at 50 Hz, and this equipment is US-specified. Confirm your transformer and intended use with us before ordering.

Supplied to trade buyers only. Because this item is not UK supply specification, we supply it to businesses specifying it for a known application rather than to consumers. Tell us the installation and we will confirm what you need before you order.

Quantity
UK BasedExpert AdviceFree QuoteTechnical Support
Share: Email

Specification
1022V
Motor
1.5 HP, 110V, single-phase, 10A
Swing Over Bed
9-7/8″ (250 mm)
Swing Over Cross Slide
5-1/2″ (140 mm)
Swing Over Saddle
5″ (127 mm)
Distance Between Centers
21-5/8″ (550 mm)
Bed Width
5-3/8″ (135mm)
Spindle Bore
1-1/2″ (38 mm)
Spindle Mount
Intrinsic back plate
Spindle Type
One-piece Spindle
Spindle Taper
MT#5
Tailstock Taper
MT#2
Tailstock Quill Travel
3″ (75 mm)
Cross Slide Travel
5″ (127 mm)
Compound Slide Travel
3″ (75 mm)
Carriage Travel
19-5/8″(500mm)
Spindle Speeds
0–2000 RPM
Number of Speed Ranges
Variable
Longitudinal Feeds
0.0025 – 0.014 in./rev.
Transverse Feed Rate
0.0014 – 0.004 in./rev.
Leadscrew Size & Pitch
20mm(8TPI)
Threading Capacity – Inch
8–80 TPI(37KINDS)
Threading Capacity – Metric
0.35 – 3.0 mm(21kinds)
Maximum Tool Bit Size
15/32”(12mm)
Thread Dial Indicator
YES
Coolant System
OPTIONAL
Overall Dimensions
44.0″ × 25.0″ × 19.0″ (1220 × 635 × 480 mm)
Approximate Shipping Weight
308/352 lbs (140/160 kg)

Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
