MACHINERY GROUP LTD

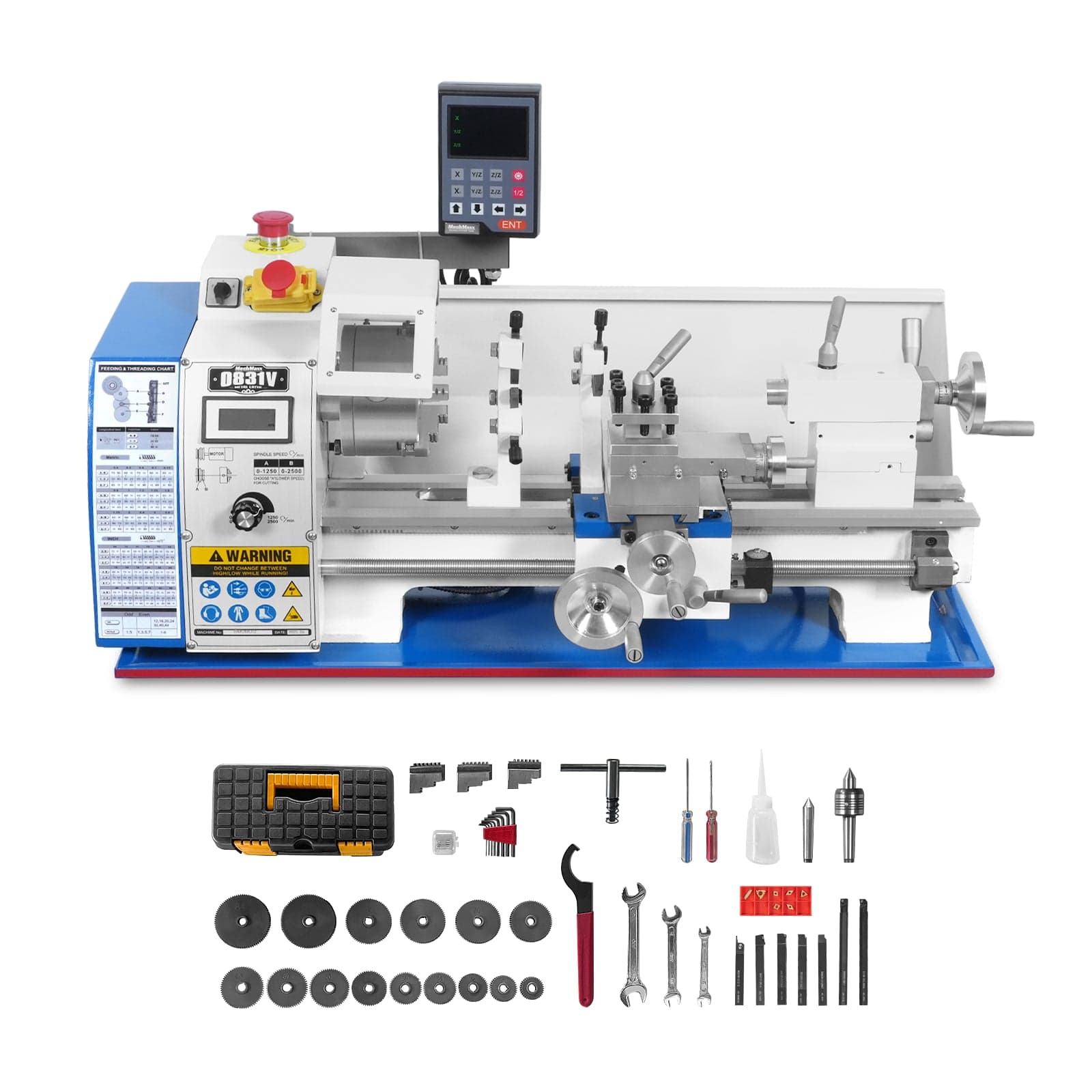

1.5‘’ Spindle Bore Metal Lathe Machine with DRO 8'' x 16'' High Precision Brushless Motor Mini 1.5HP Benchtop 0-2500 RPM Variable Speed Metal...

1.5‘’ Spindle Bore Metal Lathe Machine with DRO 8'' x 16'' High Precision Brushless Motor Mini 1.5HP Benchtop 0-2500 RPM Variable Speed Metal...

8''-11''Swing Lathes

£1,479.58

Indicative price — contact our team to confirm and quote

  • No obligation
  • Fast response
  • Expert advice

110 V equipment — check your supply

This unit is specified at 110 V, against UK mains of 230 V. 110 V is common on UK sites as a centre-tapped transformer supply, so this may well suit site use — but UK site supply runs at 50 Hz, and this equipment is US-specified. Confirm your transformer and intended use with us before ordering.

Supplied to trade buyers only. Because this item is not UK supply specification, we supply it to businesses specifying it for a known application rather than to consumers. Tell us the installation and we will confirm what you need before you order.

Quantity
UK BasedExpert AdviceFree QuoteTechnical Support
Share: Email

Motor
1.5 HP, 110V, Single-Phase, 10A, 60Hz
Swing Over Bed
8‑1/4″(210mm)
Swing Over Cross Slide
4‑5/8″(117mm)
Swing Over Saddle
3-1/2″(90mm)
Distance Between Centers
15‑3/4″(400mm)
Bed Width
4″(100mm)
Spindle Bore
1-1/2″(38mm)
Spindle Mount
Intrinsic back plate
Spindle Type
One-piece Spindle
Spindle Taper
MT#5
Tailstock Taper
MT#2
Tailstock Quill Travel
2″(50mm)
Cross Slide Travel
3-1/2″(90mm)
Compound Slide Travel
2-3/4″(70mm)
Carriage Travel
14-5/16(350mm)
Spindle Speeds
0–2500 RPM
Number of Speed Ranges
Variable
Longitudinal Feeds
0.0037-0.0068 in./rev.
Transverse Feed Rate
/
Leadscrew Size & Pitch
16mm(12TPI)
Threading Capacity – Inch
8–48 TPI（18kinds）
Threading Capacity – Metric
0.4–3.5mm(15kinds)
Maximum Tool Bit Size
15/32″(12mm)
Thread Dial Indicator
YES
Overall Dimensions
36″ W x 19″ D x 20″ H (914 x 480 x 490 mm)
Approximate Shipping Weight
190lbs(75 kg)

Specifications are provided for comparison only and may be based on engineering calculations rather than physical measurements. They are subject to change without notice and vary with design, manufacturing and operating conditions. Confirm exact specifications with us before ordering.
